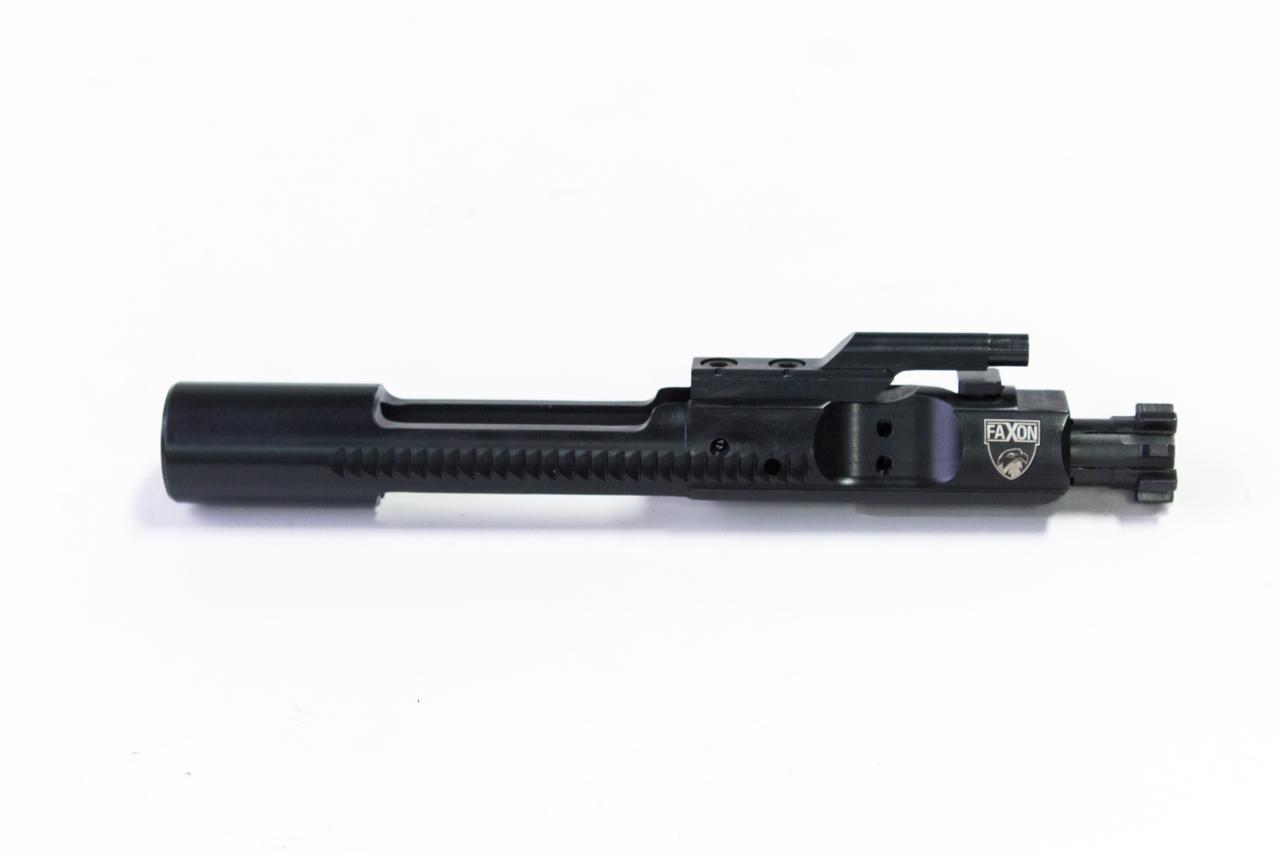

Faxon Firearms 5.56/300 BLK M16 Bolt Carrier Group - Nitride - FF556BCGCNITRIDE
Out of stock
MANUFACTURER’S DESCRIPTION
We just can’t help not accepting the status quo. Bolt carrier groups are available aplenty, but few could meet our exacting standards for performance and value. Seeing “MIL-SPEC” as just the starting point, we set out to ensure the best options are available for our demanding customers.
Improvements include using 9310 tool steel for the bolt, which is stronger and nitriding the assembly to increase surface hardness, decrease resistance, and have superior corrosion resistance compared to typical chrome and phosphasted bolt carrier groups. All bolts are fully MPI tested to ensure the material is sound and without defects. Bolt lugs are chamfered 45 degrees to ensure reliable action for even the highest pressure hand loads and fast lightweight actions.
Faxon Bolt Carrier Groups are Superfinished to reduce friction, increase smoothness of operation, and reduce fouling. Further, they are full-Auto rated and maintain the trip for full-auto fire control groups and new multi-stage trigger systems. Gas keys use grade 8 fasteners and are fully staked for a lifetime of service.
Detailed Specifications:
- 9310 Tool Steel Bolt
- Full MIL-SPEC Heat Treatment
- Shot Peened to MIL-SPEC
- Magnetic Particle Inspection (MPI)
- Back of Lugs Chamfered for Reliability
- Spring, Insert, & “Crane” O-Ring Installed
- Salt Bath Nitrided Bolt & Carrier
- S7 Extractor
- Superfinished Carrier Body
- Full Auto Compatible
- Forward Assist Serrations
Note – Bolt carriers ordered and deployed with barrels not specifically checked by Faxon for headspacing MUST be checked to ensure safe and reliable function. Faxon recommends Pacific Tool & Gauge headspace kits for all measurements. For detailed instructions on headspacing, see our blog post for instructions.
| Weight | 12.6 oz |
|---|---|
| Dimensions | 9.25 × 1.9 × 11.408 in |
| Bolt Material | 9310 Steel |
| Cartridge Compatibility | .223/5.56 NATO/.300 BLK |
| Finish | Nitride / Melonite |
| Carrier Profile | M16 |
| High Pressure Tested | Untested |
| Magnetic Particle Inspected | Magnetic Partical Inspected |
| Platform | AR-15 |
| Bolt Finish | Nitride / Melonite |
| MPN | FF556BCGCNITRIDE |
| UPC | 816341020870 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
Customer Reviews
- Reviews
- Questions
- Faxon
- quality
- finish
- build
- gas key
- service
- upper
- rounds
- Works
- AR15
United States
Faxon Quality
Love Faxon’s BCG - ran about 500 rounds on one of them yesterday. Solid and consistent performance.
USGreat product and service
Easy user interface. Great product and delivery time. Will be using again.
USExcellent
I went to the range and my oh my, this BCG was BUTTER smooth!
USFirst Quality BCG
I ordered this to go with a Faxon pencil barrel in .556 and a Aero Precision M4E1 upper for a light weight build. I also used a Spikes Tactical melanite coated gas tube. The gas key was a snug fit and needed a tiny bit of oil. The BCG is first quality. The workmanship and attention to detail really show. I would recommend this BCG to anyone.
USBCG
Bolt functions flawlessly, great quality and well made.
