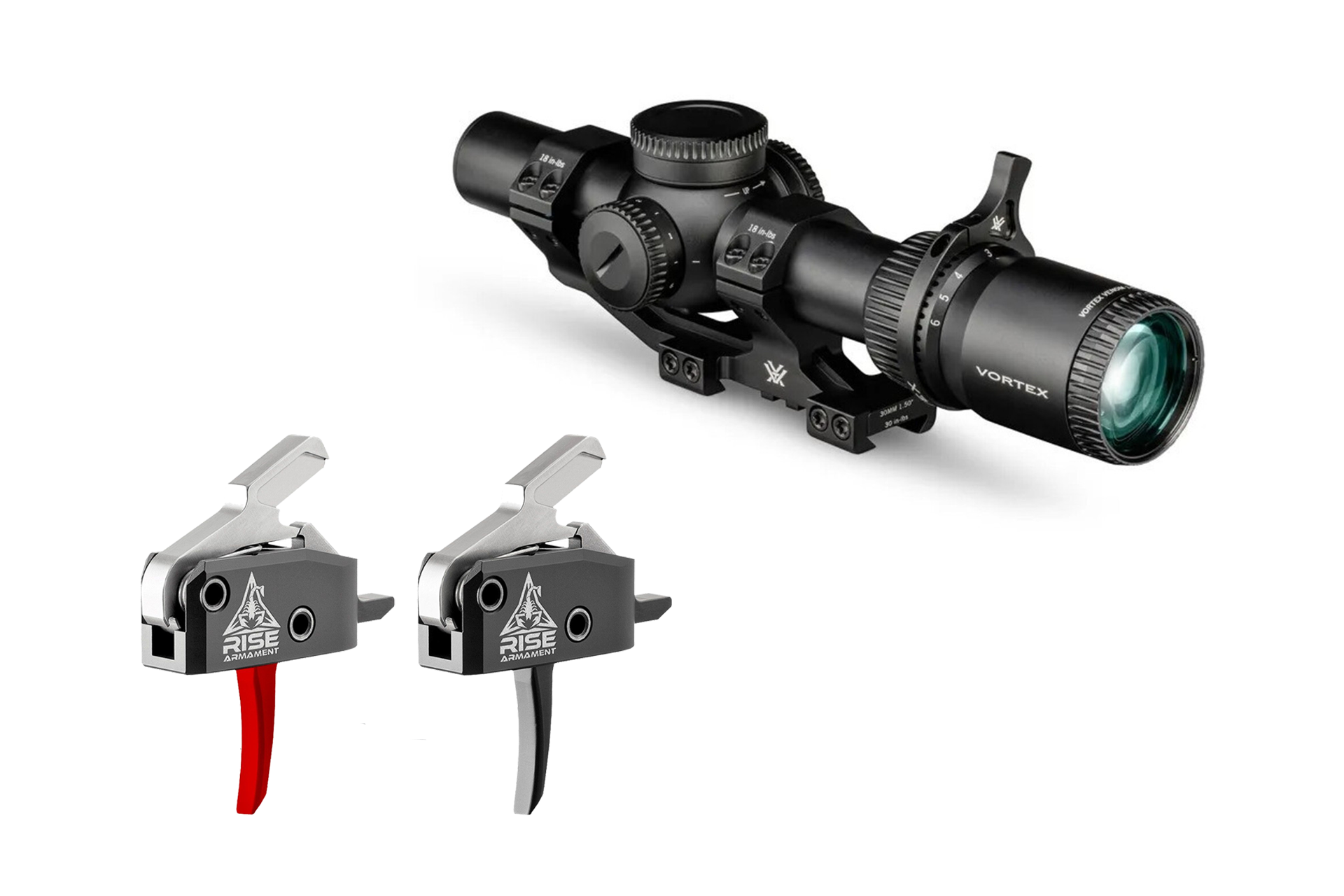

Vortex Venom 1-6-24 SFP 30mm AR-BDC3 LPVO w/ 2" Cantilever 30mm Mount + Rise Armament RA-434 Drop-In Trigger Bundle

Vortex Venom BDC3 MOA 1-6×24 SFP Scope 30MM & Sport Mount Bundle

Venom 1-6×24 Second Focal Plane Riflescope – BDC-3 (MOA) Reticle (VEN-1601)
When you’re ready to maximize your capabilities, the Venom 1-6×24 SFP delivers the downrange accuracy, workhorse function, and speed you need for opening the throttle on close- to mid-range engagements. Water, fog, and shockproof. Great glass quality. The illuminated BDC3 reticle makes for quick target acquisition. Standard throw-lever delivers on-the-fly magnification. For entry-level users, it’s a hardworking LPVO built to get you in the game.

BDC-3 (MOA) Reticle
Improved for ranging distances and holdovers and illuminated for clarity in low light.
Use the ranging feature at the top of the reticle to range a silhouette target up to 600 yd.
BDC subtensions accurately shoot targets from 20-650 yards.
5 MPH wind increments

Elevation & Windage Turrets
The Venom1-6×24 SFP riflescope comes equipped with capped Elevation and Windage Turrets. This protects the turrets from accidental adjustment while out in the field, in transit, or in storage. You will need to remove the caps prior to making any adjustments on the turrets.

Use turrets to adjust the point of impact. The Venom 1-6×24 SFP riflescope uses a 1/4 MOA adjustment on both the Windage and Elevation Turrets. Each click will move the point of impact roughly 0.25″ at 100 yards for MOA. The turret on the top of the riflescope is the Elevation Turret, which is used to adjust the point of impact up and down. The turret on the righthand side of the riflescope is the Windage Turret and is used to adjust the point of impact left and right.

Rise Armament RA-434 High-Performance Trigger

The accuracy-enhancing RA-434 High-Performance Trigger uniquely combines smoothness and speed for a serious upgrade in performance. The first of its kind, the RA-434 HPT is a premium trigger available at a mid-range cost.

KEY FEATURES
Single-stage trigger system
Helps you shoot more accurately with less effort
Ultra-smooth to the break with a crisp, clean release
Quick reset and low overtravel for serious speed
Friction-reducing premium nickel boron coating on interior parts for smoother contact surfaces
Lightened trigger pull (3.5-lb. pull weight)
Lightened hammer
Straight trigger blade for enhanced control and lighter feeling pull weight
Drop safety feature
Self-contained design makes it easy and quick to install with no fine-tuning needed
Unit weight: 2.4 oz.
Manufactured and assembled in our facility according to strict AS9100 aerospace requirements, which are more stringent than standard gun manufacturing requirements
CNC machined from high-grade, heat-treated tool steel and aluminum
Black 8625 Hardcoat anodized aluminum cassette housing
Fits most .308 and .223 AR style platforms (Not recommended for Sig MPX)
KNS pins recommended but not required. If you do not use KNS pins, be sure to follow step 8 in the installation instructions linked below. The set screws should be used with any trigger pins.
To view installation instructions, read our tutorial here
Note: The set screw should not be tampered with. Any attempts to modify the trigger will void the warranty.
U.S. Patent No. 7,293,385
