Brand: Faxon Firearms

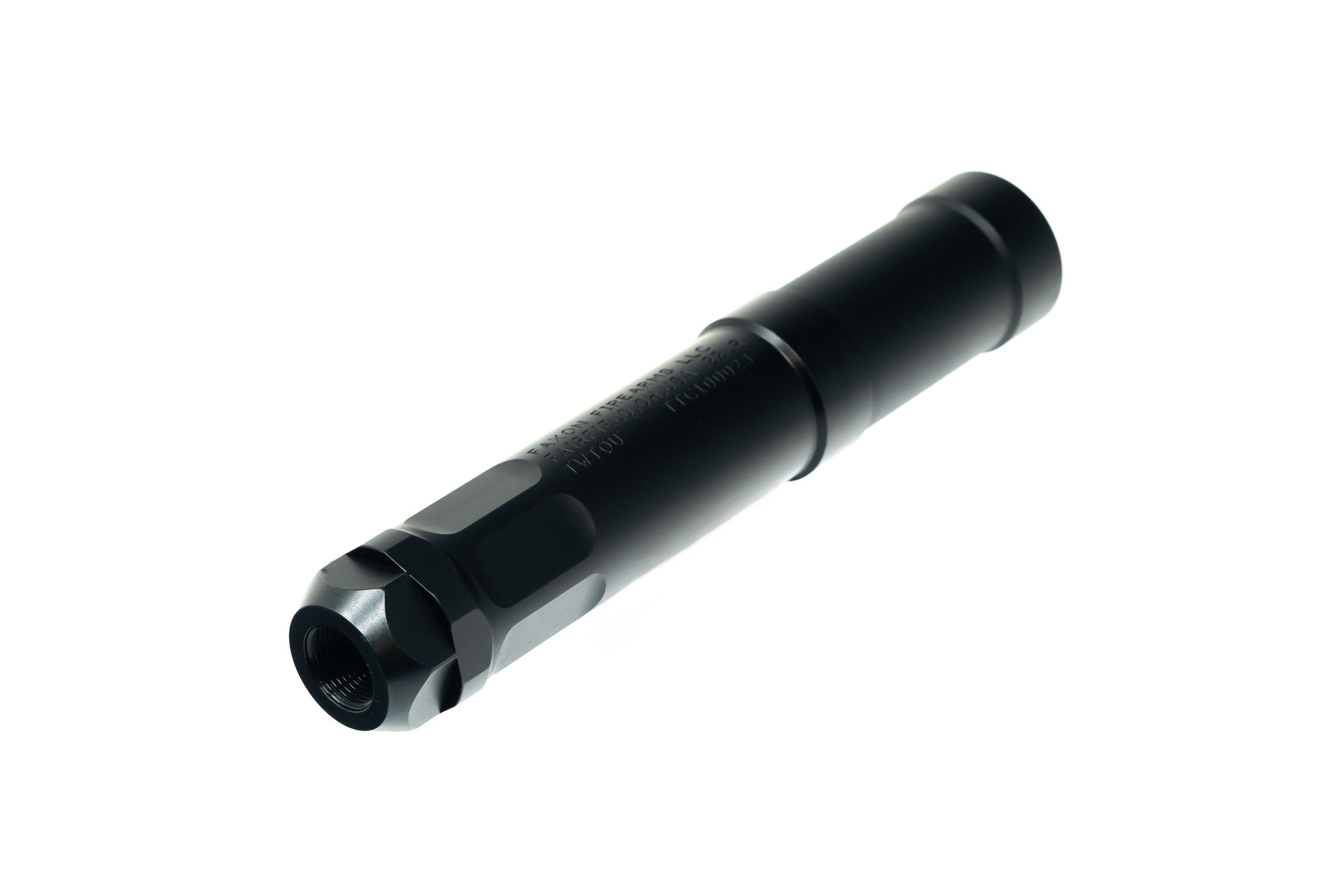

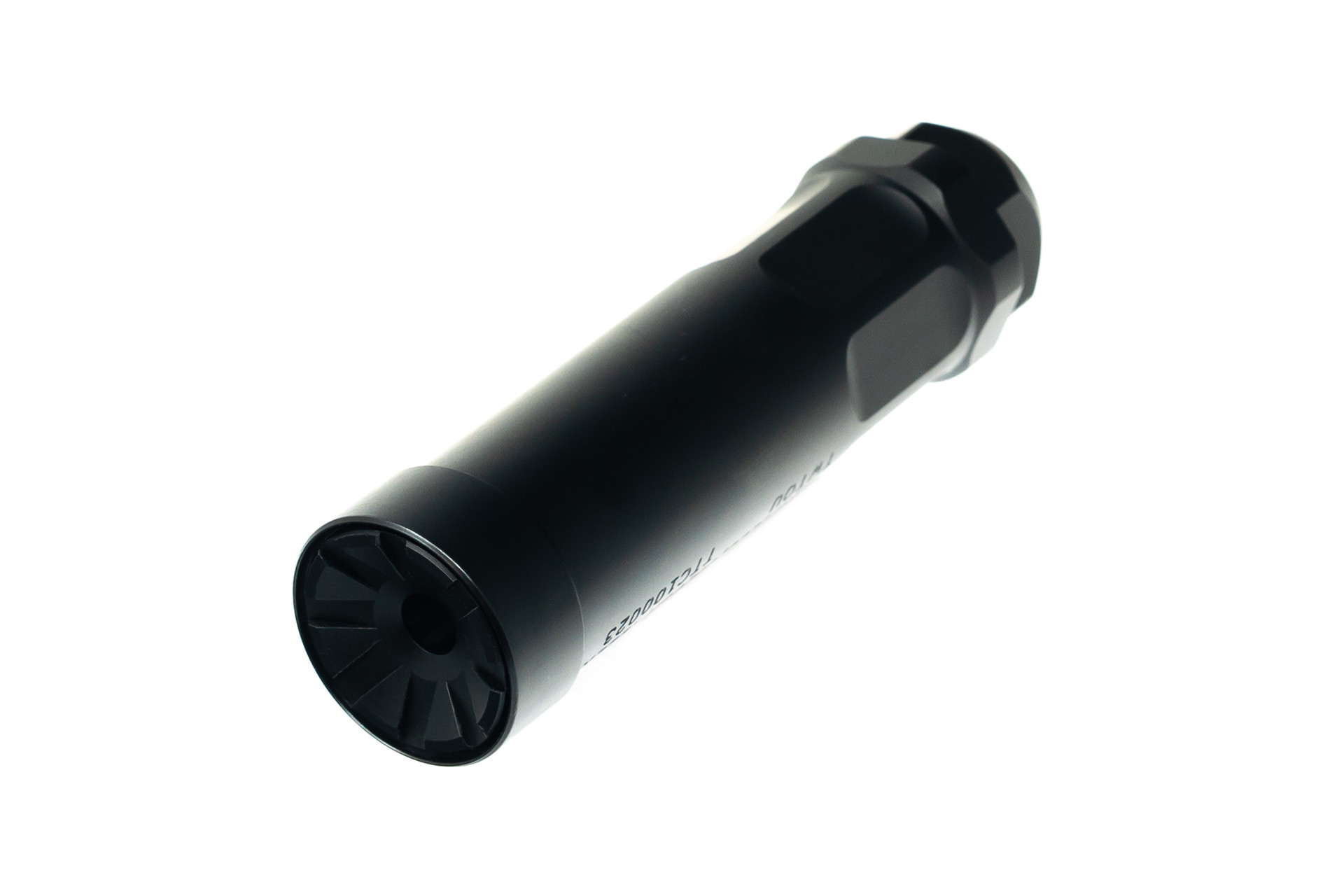

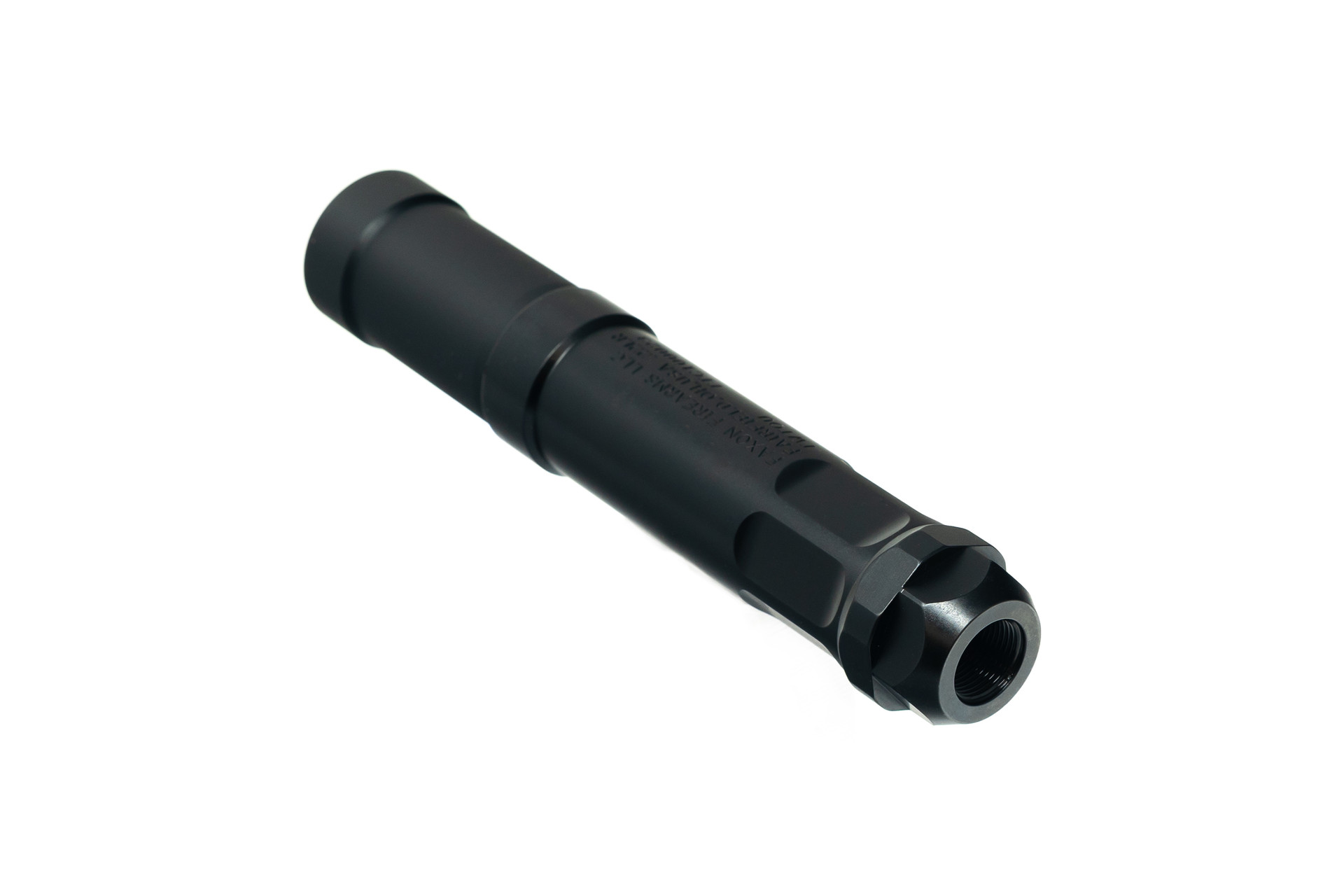

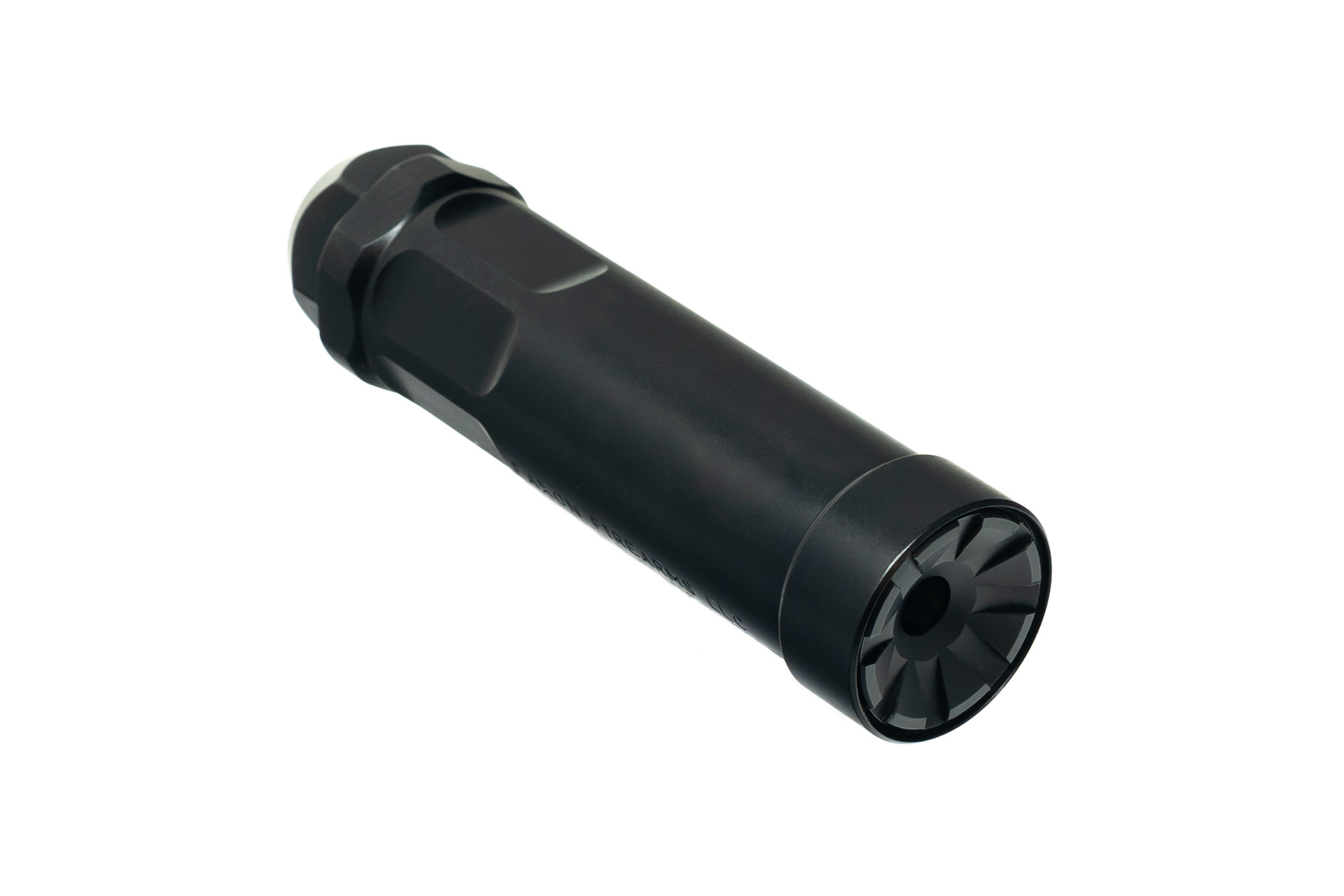

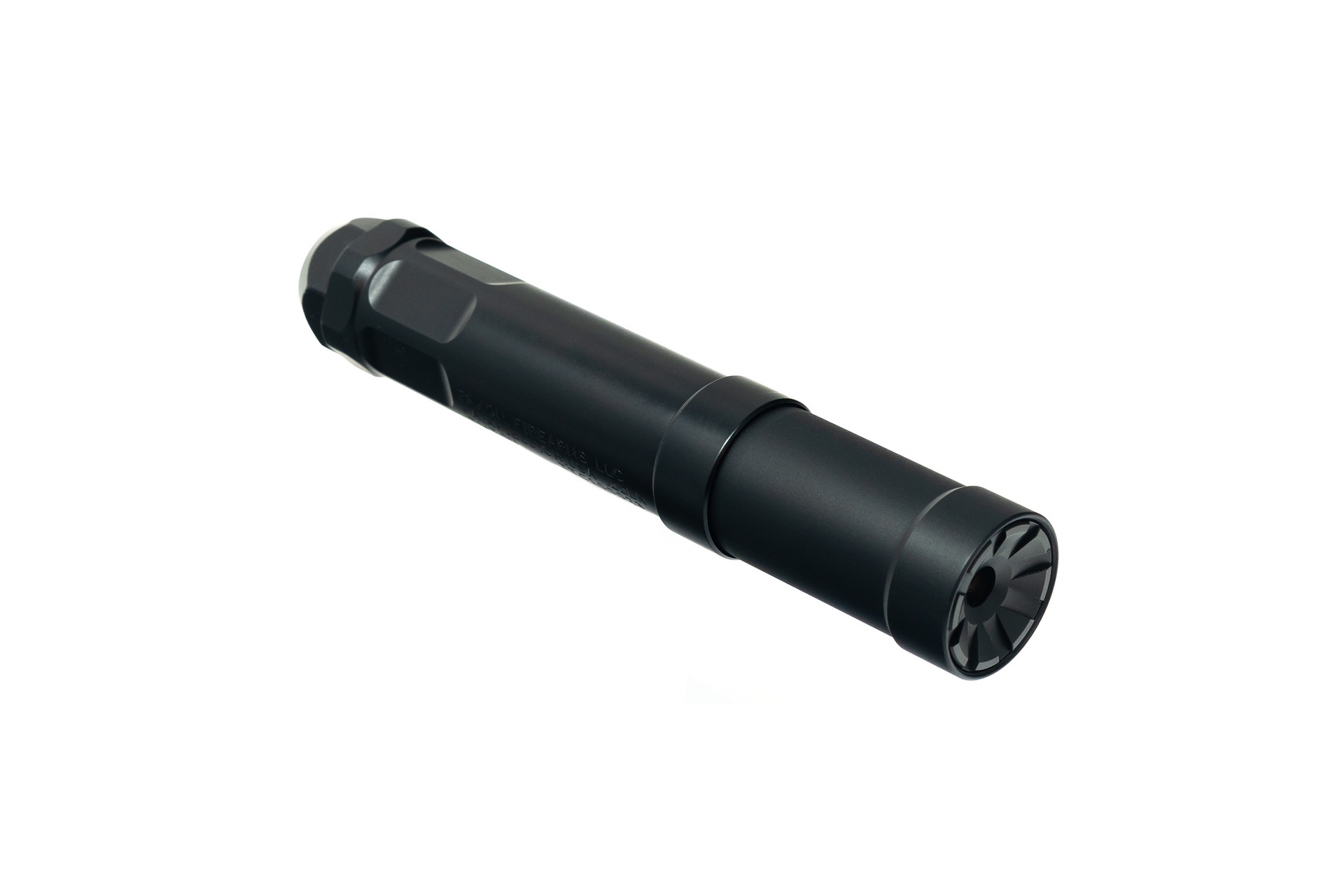

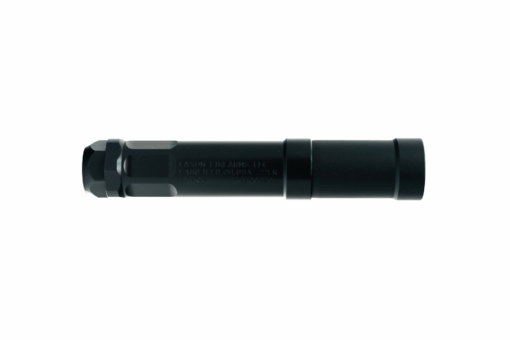

Faxon Firearms Twenty Toucan Modular Rimfire Suppressor - FF-SIL-RF-MOD-22-01
Save 8 %
MSRP: $400.00
$368.00
Only 1 left in stock
Description
Technical Specifications
| Feature | Specification |
|---|---|

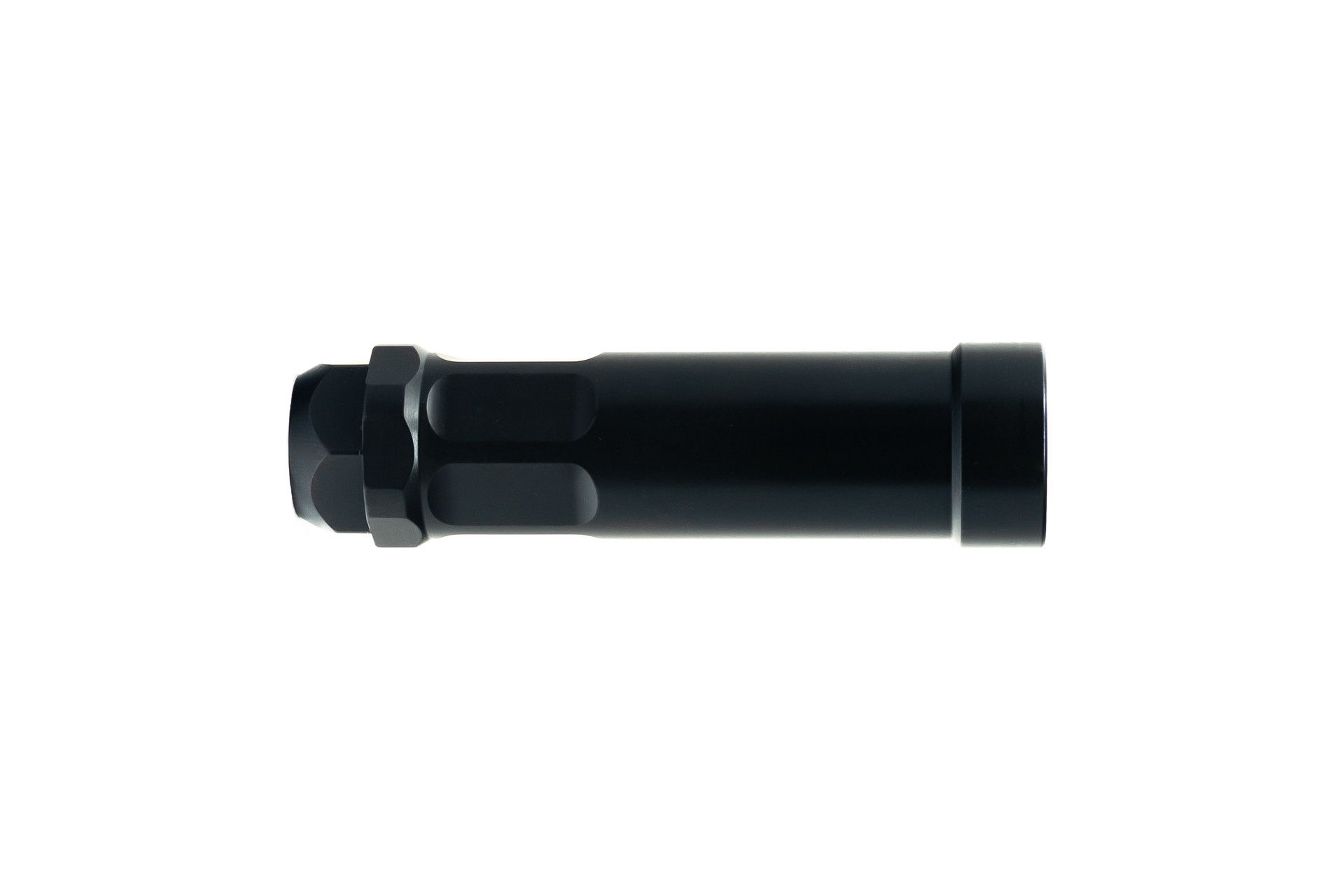

| Length | 3.87″ (short) / 5.75″ (full) |
| Weight | 5.1 oz (short) / 8 oz (full) |
| Material | 17-4 Stainless Steel |
| Finish | Black Nitride |
| Thread Mount | 1/2×28 Direct Thread |
| Caliber Compatibility | .22 LR, .22 Mag, 5.7x28mm |
| Full Auto Rated | Yes – rated for full-auto fire in .22 LR, .22 Mag (no barrel restriction), and 5.7x28mm (minimum 5″ barrel) |
| Semi-Auto Barrel Restrictions | No barrel length restrictions for .22 LR, .22 Mag, or 5.7x28mm |
| Serviceable | Yes |
| Warranty | Faxon Lifetime Guarantee |
| Max Body Diameter | 1.070″ |
| Minimum Extension Diameter | 1.00″ |
| Wrench Flats | 1.000″ and 0.875″ |
In the Box
| Item | Description |
|---|---|
| Suppressor | Faxon Twenty-Toucan® .22cal Modular Suppressor |

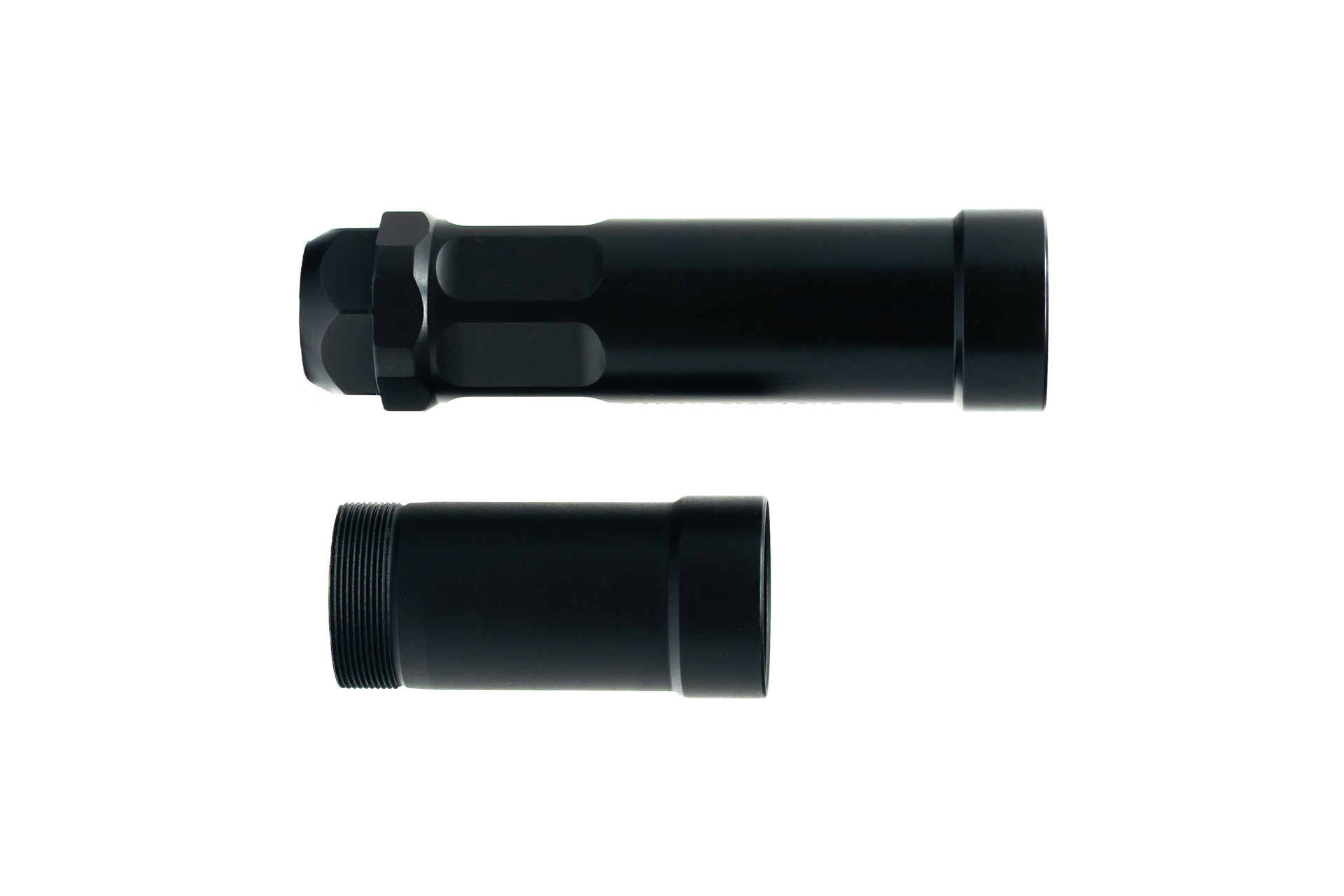

| Extension Tube | Modular tube for full-length configuration |
| End Cap | Threaded end cap for secure closure |
| Challenge Coin | Rifled .50 cal barrel slice coin for end cap removal |
Performance Results (dB Reduction vs. Bare Muzzle)
| Platform | Configuration | Reduction vs Bare Muzzle |
|---|---|---|
| 16″ Semi-Auto Rifle Standard Velocity |
Full Configuration | 28.8 dB |
| Short – Perforated | 15.8 dB | |
| Short – Non-Perforated | 16.2 dB | |
| 18″ Bolt Action CCI Quiet |
Full Configuration | 26.6 dB |
| Short – Perforated | 12.6 dB | |
| Short – Non-Perforated | 17.4 dB | |
| 4″ Semi-Auto Pistol Standard Velocity |
Full Configuration | 28.2 dB |
| Short – Perforated | 19.5 dB | |
| Short – Non-Perforated | 16.8 dB |
Real-World Tuning Tips

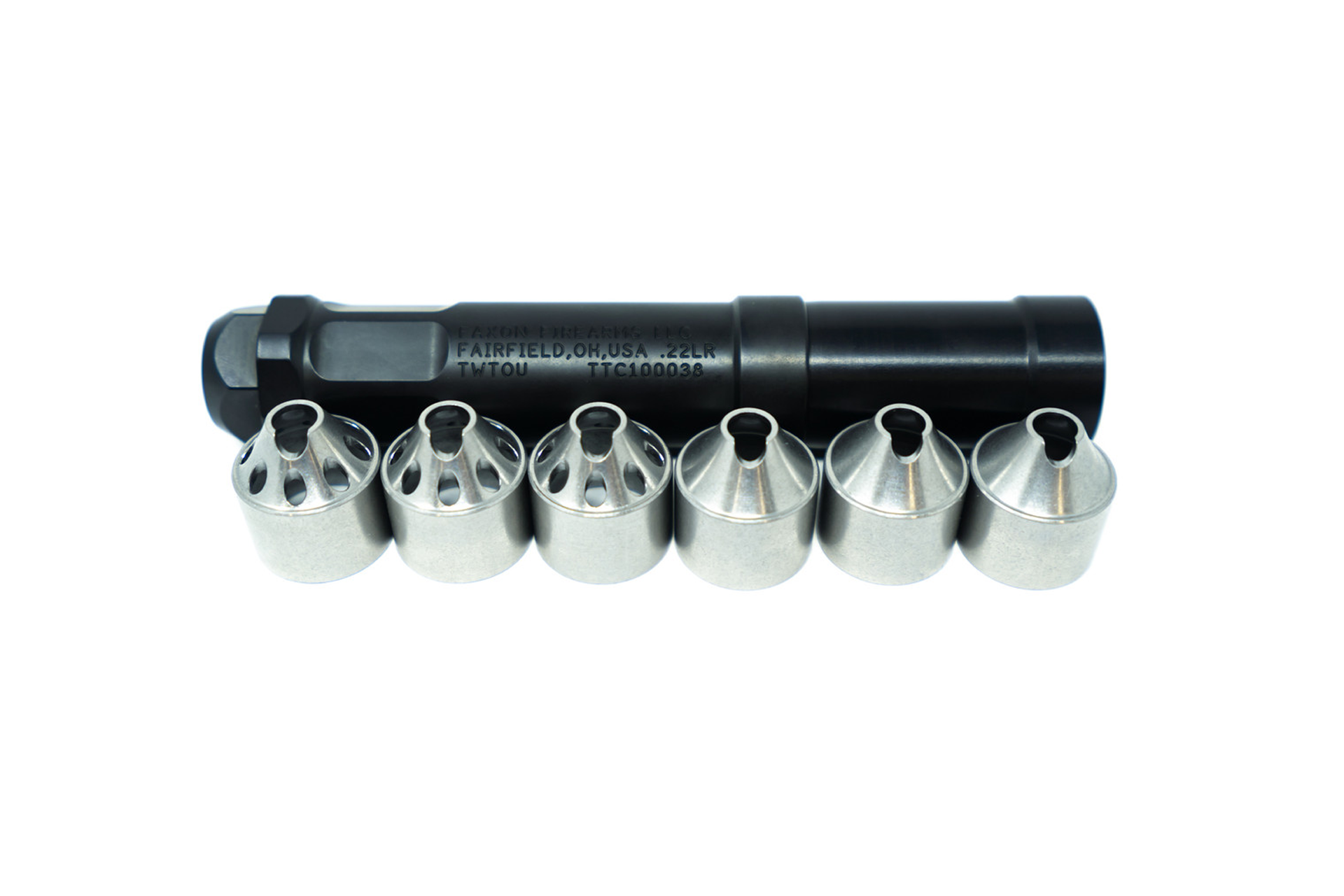

- In short configuration, you can choose to use either perforated or non-perforated baffles depending on your goals.
- For longer configurations, experiment with placing perforated baffles closer to the breech to manage gas and backpressure, or toward the muzzle to reduce flash.
- Try alternating baffle types to find your preferred balance of tone, flash reduction, and gas dispersion.
Order your Faxon Twenty-Toucan® today and enjoy the most tunable, durable, and fun .22 suppressor on the market—backed by Faxon’s Lifetime Guarantee.
Additional information
| Weight | 8 oz |
|---|---|
| Mount Style | 1/2×28 |
| Length (inches) | 5 |
| Caliber (Maximum) | Other |
| Baffle Material | Steel |
| Body Material | Steel |
| User-Serviceable | Yes |
| Finish | Nitride / Melonite |
| MPN | FF-SIL-RF-MOD-22-01 |
| UPC | 816341029033 |
