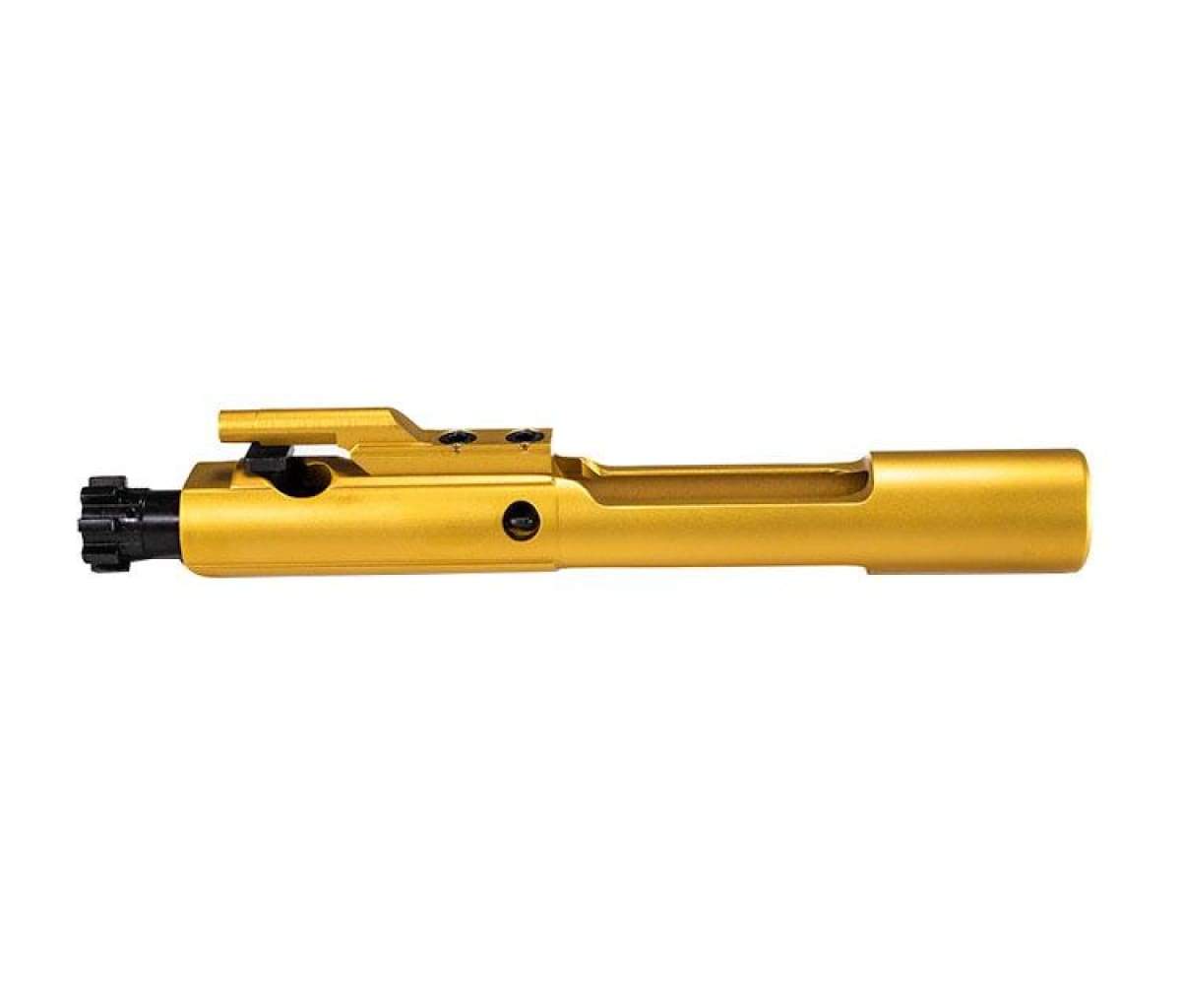

Faxon Firearms Tin M16 Bolt Carrier Group - FF556BCGCNITRIDE-TiN
Save 30% MSRP: $199.00 Original price was: $184.00.$139.95Current price is: $139.95.
In stock
We just can’t help not accepting the status quo. Bolt carrier groups are available aplenty, but few could meet our exacting standards for performance and value. Seeing “MIL-SPEC” as just the starting point, we set out to ensure the best options are available for our demanding customers.
Improvements include using 9310 tool steel for the bolt, which is stronger and nitriding the assembly to increase surface hardness, decrease resistance, and have superiorcorrosion resistance compared to typical chrome and phosphasted bolt carrier groups. All bolts are fully MPI tested to ensure the material is sound and without defects. Bolt lugs are chamfered 45 degrees to ensure reliable action for even the highest pressure hand loads and fast lightweight actions.
Faxon Bolt Carrier Groups are Superfinished to reduce friction, increase smoothness of operation, and reduce fouling. Further, they are full-Auto rated and maintain the trip for full-auto fire control groups and new multi-stage trigger systems. Gas keys use grade 8 fasteners and are fully staked for a lifetime of service.
Specifications:
Bolt:
- 9310 Tool Steel Construction (Stronger than C158)
- Full MIL-SPEC Heat Treatment
- Shot Peened to MIL-SPEC
- Magnetic Particle Inspection (MPI)
- Back of Lugs Chamfered for Reliability
- spring Insert, & “Crane” O-Ring Installed
- Salt Bath Nitrided
Extractor:
- S7 Tool Steel Construction
- Fully Heat Treated
- Shot Peened Per MIL-SPEC
- QPQ – Salt Bath Nitrided
Carrier & Key:
- Superfinished Carrier
- Carrier: MIL-SPEC 8620 Steel Material
- Key: 4140 Steel Material
- Fully Heat Treated
- Forward Assist Serrations
- M16 (FULL-AUTO) Compatible
- Grade 8 Fasteners
- Fully & Properly Staked Key, Permatex Sealed
- TiN PVD & Salt Bath Nitrided
Cam Pin:
- 4140 Pre-Hardended Steel Material
- QPQ – Salt Bath Nitride
Note: Bolt carriers ordered and deployed with barrels not specifically checked by Faxon for headspacing MUST be checked to ensure safe and reliable function. Faxon recommends Pacific Tool & Gauge headspace kits for all measurements. For detailed instructions on headspacing, see our blog post for instructions.
| Weight | 11.4 oz |
|---|---|
| Dimensions | 10.1 × 3.7 × 2 in |
| Bolt Material | 9310 Steel |
| Cartridge Compatibility | .223/5.56 NATO/.300 BLK |
| Finish | TiN |
| Carrier Profile | M16 |
| High Pressure Tested | Untested |
| Magnetic Particle Inspected | Magnetic Partical Inspected |
| Platform | AR-15 |
| Bolt Finish | Nitride / Melonite |
| MPN | FF556BCGCNITRIDE-TiN |
| UPC | 816341024632 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
Customer Reviews
- Reviews
- Questions
- build
- part
- no one
- jams
- Faxon
US
Bolt Carrier Group
Great product and great experience
USLooks great...Understood the assignment.
Who needs a gold bolt? No one but I wanted one for a build that I was planning. In fact, I almost bought this one part before I purchased anything else. Once I had enough parts to make the build operational, I took it out and shot it. Smooth like butter but sparks like gold. Excellent part and looks the part. Almost matches the cerakote on the handguard. Now that I have the right heart, I can finish the build.
USFaxon gold bcg
This purchase was all about the gold! You can never go wrong with Faxon products. If you are looking for a way to accent your build, this is a good way!
USBeautiful finish
The finish was excellent. Unfortunately, the carrier wasn't compatible with the build and would cause jams. I'm sure that it was due to the upper receiver and not the part.
