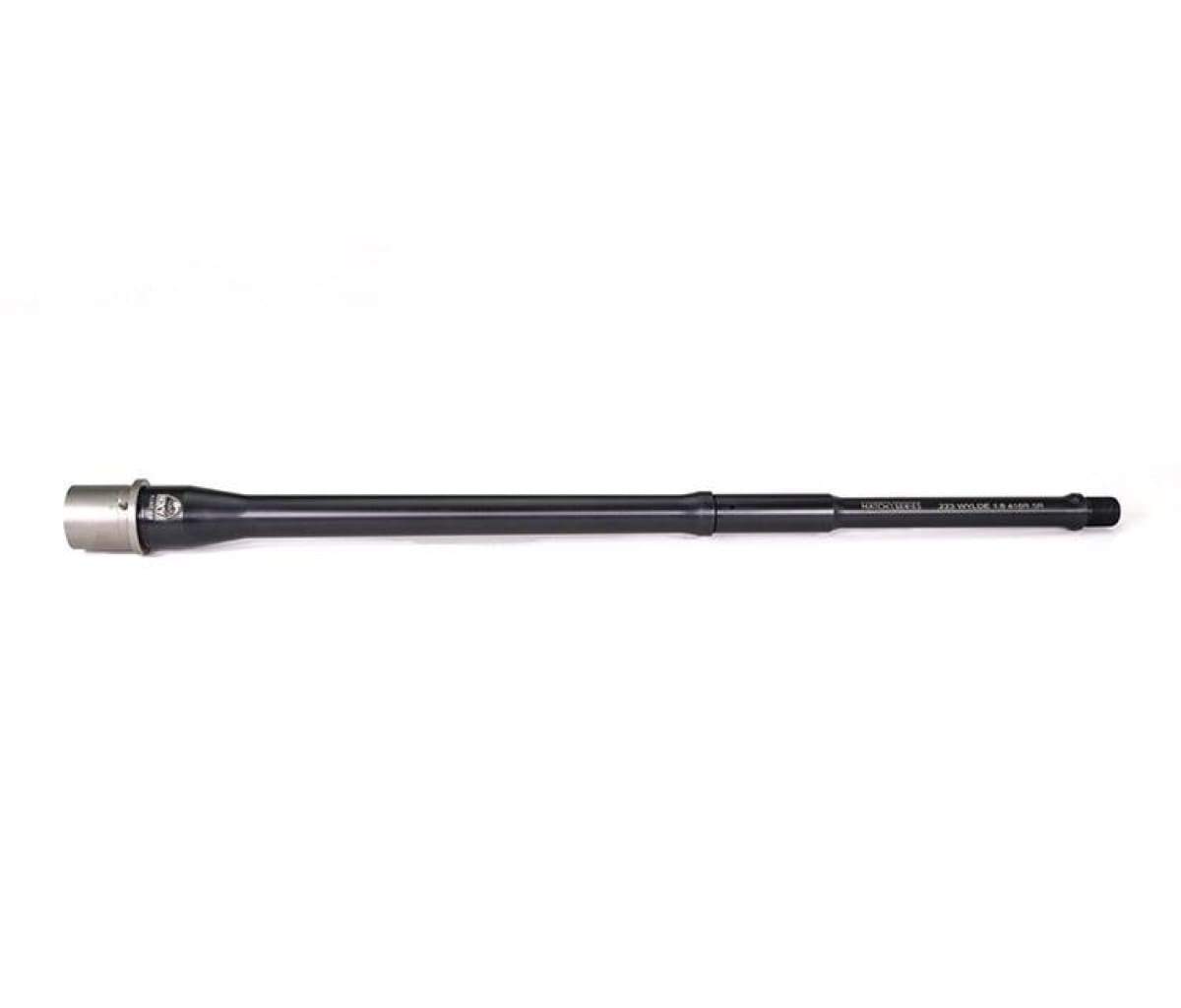

Faxon Firearms Match Series 16" PENCIL .223 Wylde Mid-Length 416-R Stainless Nitride / Melonite 5R Nickel Teflon Extension Barrel - 15BW8M16NPQ-5R-NP3
Only 9 left in stock
Our pencil barrels are the lightest in the industry. Don’t take just our word for it, major companies like Robar, Kaiser US, 2A Armament, and others choose Faxon pencils for their ideal balance of weight and performance.
Faxon Firearms barrels are the pinnacle of value. Manufactured 100% in-house from cradle-to-grave, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.
Quality is imbued into our barrels from the start. We start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.
Faxon’s MATCH SERIES of barrels takes our renowned performance and value up a notch.
Manufactured 100% in-house from gun-barrel-quality bar-stock, the Match Series starts with 416-R in 5R rifling. 5R is a hybrid rifling, with lands opposite grooves and reduced sharp angles that reduces jacket deformation increasing velocity and easy cleaning. We chamber our Match Series in .223 Wylde, a hybrid chamber that the 5R rifling takes full advantage of. Better accuracy through less bullet jump, but fully and individually MPI tested for your safety. After rigorous testing, the barrels are Nitride treated inside and out, locking in the bore, improving barrel life, and keeping the elements at bay.
The extension is coated in Nickel Teflon which maintains incredible dry lubricity, corrosion resistance, and with the coating, tightens up fit between the extension and receiver – again improving upon accuracy. Combined, the Match Series of barrels are ready for when duty calls or the buzzer beeps with unrivaled performance value.
- Barrel Material: 416-R Stainless Steel
- Barrel Type: Button Rifled
- Barrel Caliber: .223 Wylde
- Barrel Twist: 1:8
- Barrel Length: 16
- Barrel Profile: Pencil
- Barrel Gas System: Mid
- Inside Finish: Salt Bath Nitride
- Outside Finish: Salt Bath Nitride
- Muzzle Thread: 1/2-28 TPI (Threads Per Inch)
- Gas Block Diameter: .625
- Gas Block Journal Length: 1.1
- Barrel Extension: M4 – Nickel Teflon Coated
- Weight: 1.19 lbs
- Magnetic Particle Inspected
- Polished 11-degree Target Crown
Weight | 19.04 oz |
---|---|
Dimensions | 18 × 3 × 3 in |
Finish | Nitride / Melonite |
Barrel Profile | Pencil |
Gas System Length | Midlength |
Gas Block Journal | 0.625 |
Barrel Length (inches) | 16 |
Barrel Chamber | .223 Wylde |
Platform | AR-15 |
Twist Rate | 1-8 |
Muzzle Thread Pattern | 1/2×28 |
MPN | 15BW8M16NPQ-5R-NP3 |
UPC | 816341023123 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
