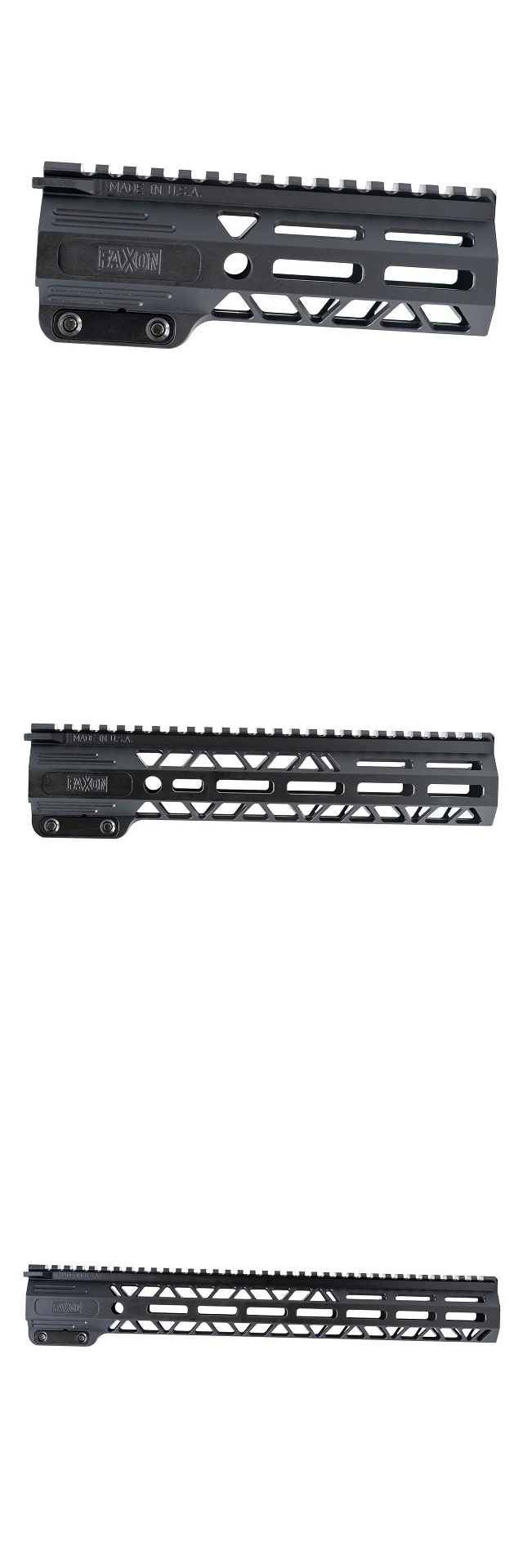

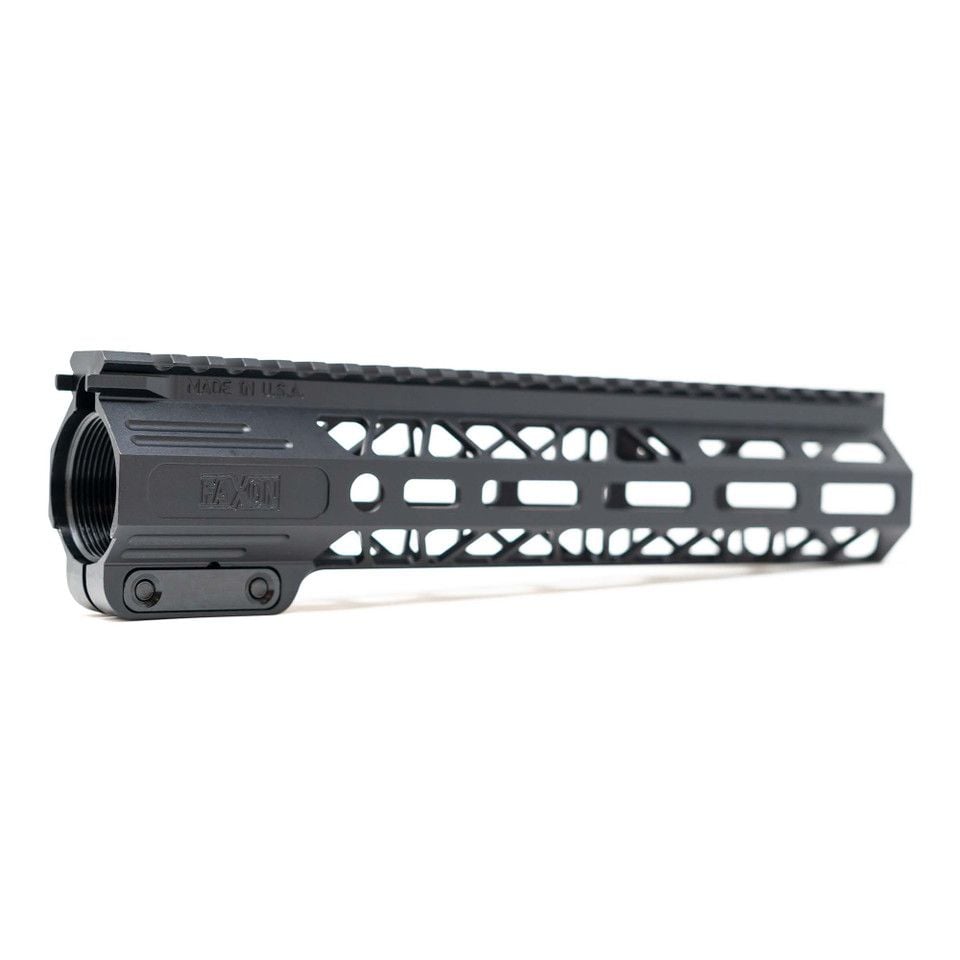

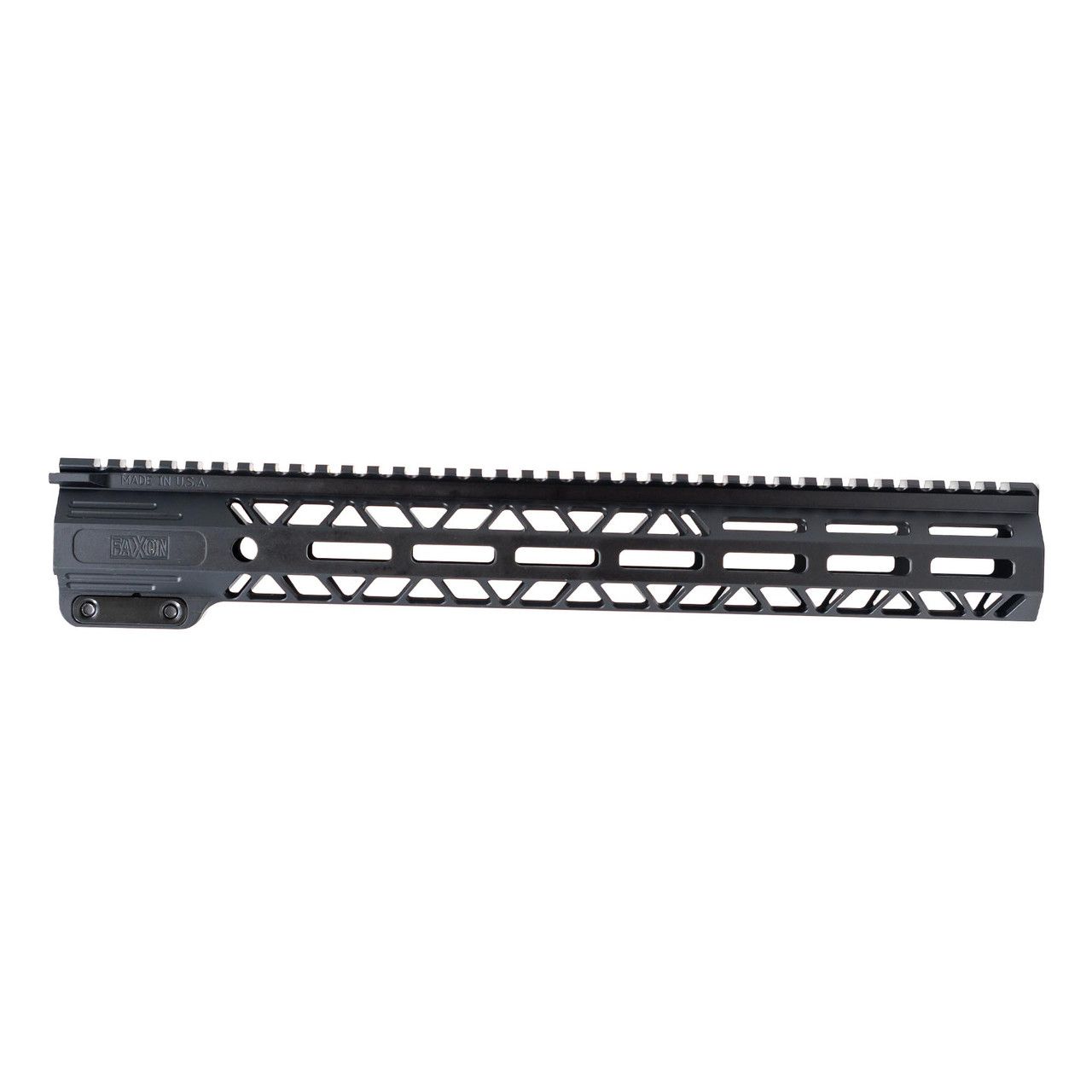

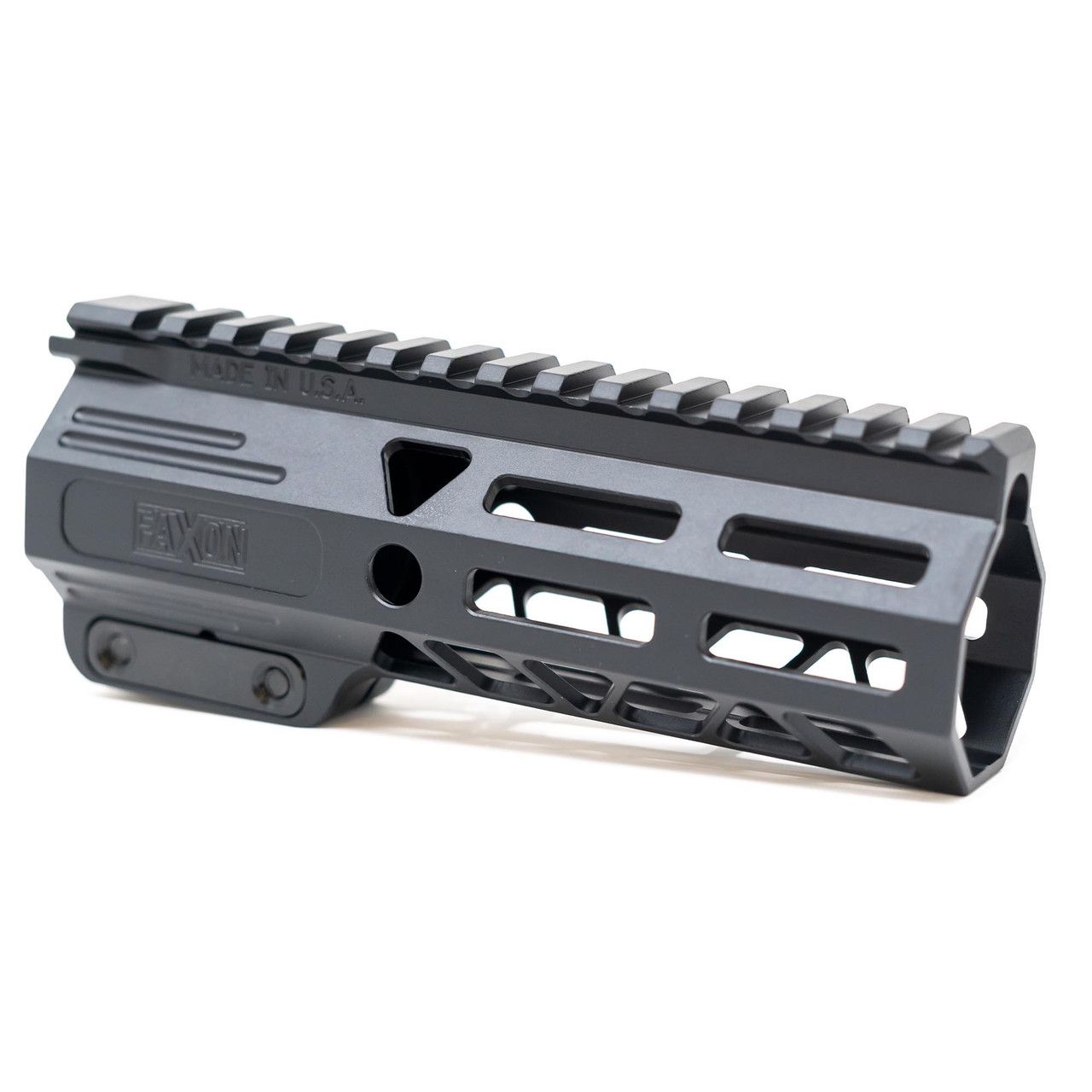

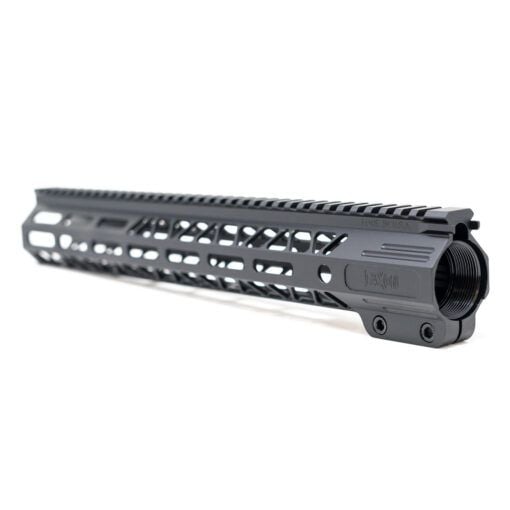

Faxon Firearms AR-10 Streamline G3 Aluminum M-LOK Handguard
Starting from $151.80
Faxon’s Streamline handguards are a sleek and low-profile solution for those looking for a slimmer handguard with flexible mounting. Featuring an uninterrupted MIL-STD 1913 “Picatinny” rail across the top and 3 facets of M-LOK cuts, the Streamline Aluminum Handguard is a lightweight and sturdy mounting system. The handguard is 100% made in the USA from extruded 6061 aluminum, hard-coat anodized black and comes with a steel barrel nut. Mounting is extremely simple with common tools and the handguard features alignment tabs to ensure it cannot rotate during vigorous movement.
Features:
- Extremely lightweight without sacrificing strength or rigidity
- M-LOK attachment across 5 facets
- Anti-rotation tab allows your handguard to lock onto either billet or mil-spec upper receivers, while not being able to rotate radially around the barrel nut.
- Attaches with standard armorer’s wrenches and tools
Specifications:
- Construction: 6061 Aluminum Hard Coat Anodized
- Accessory Mounting: M-LOK
- Max Internal Diameter: 1.4″
- DPMS High Profile
Installation Instructions:
- Torque barrel nut to industry specs using 1-3/8 wrench to no more than 50 foot/lbs. DO NOT OVER-TIGHTEN.
- Install handguard, locking block and clamp screws. torque to 32 inch/lbs.
- After the initial live fire test, check to make sure torque specs are still in line.
| Weight | 10.56 oz |
|---|---|
| Dimensions | N/A |
| Size | 10.5", 15", 6.5" |
| Length | 10.5", 6.5", 15" |
| Color | Anodized Black |
| Rail system | Picatinny Rail |
| Profile | Free Float |
| MPN | FFHGMLOK105G310,FFHGMLOK15G310,FFHGMLOK65G310 |
| UPC | 816341026582,816341026599,816341026575 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
Customer Reviews
- Reviews
- Questions
- file
- gun smithing
- pistols
- barrels
- wrench
- AR-10
- team
- hand guard
- Stock
- order
United States
faxon 10.5 handguard
The only reasonably priced and good quality hand guard that can be found for AR-10 pistols. I was a little worried I would not like this as much as I do. It will fit on both an Aero Precision ar-10 upper and Wilson Combat. looks amazing on the WC 8.6 blackout. They clearly released this because of 8.6 blackout becoming more popular. Perfect for 12 inch barrels. PSA: the handguard has alignment tabs that slide on the upper. This is a great feature, but it needed fitting on my Wilson Combat upper. Take a small flat metal file, and SLOWLY take an extremely small amount of material off where they attach to the upper. I did not need a caliper, but I have done gun smithing with a file before. This seems tedious, but took me a couple minutes at most. You want it to be a tight fit, so constantly check if you can put it on with a reasonable amount of force. If you mess up, not a big deal. Will still be rock solid, you will just have to align the handguard yourself. If you do it right, perfect alignment every time. Also, needs a crows (1 1/4") foot if you want to apply a specific amount of force with a torque wrench, not the usual AR wrench with the teeth. However I have put these on before, and know the amount of pressure that they should have. I easily just used a crescent wrench, and checked if the barrel moves ever so slightly when moved left to right, and springs back to original location.
