The model 223CB is the new “Compact Brake”-attach version of our 223P-2 precision and sporting .223 rifle suppressor. This is the first of our “muzzle device attach” models intended for .223/5.56 mm caliber. This shares the same proven baffle design as the 223P-2 and 30P-1 (with a few modifications and optimizations), but we’ve designed it to go on new brake that is sized just right for .223 rifles, especially AR-15’s.
The way to interpret the model number for the 223CB is: .223 caliber, COMPACT BRAKE, (no suffix – there is only one size of 223CB)
The “CB” series suppressors to mount over our new compact brake and provide the same repeatability as our direct thread attach suppressors, like the 30P-1. The 30CB9 features a conical shoulder for rock solid POI repeatability and to make sure it never comes loose.
The 223CB is constructed of titanium with a fully-welded baffle core. This material and construction provides a great strength to weight ratio. It was designed primarily for semi-auto use on AR-15s and use on bolt-action .223 rifles.
The 223CB is ideal for: sporting and varmint use on semi-auto and bolt action rifles in .223 Remington and 5.56 mm NATO.
Features:

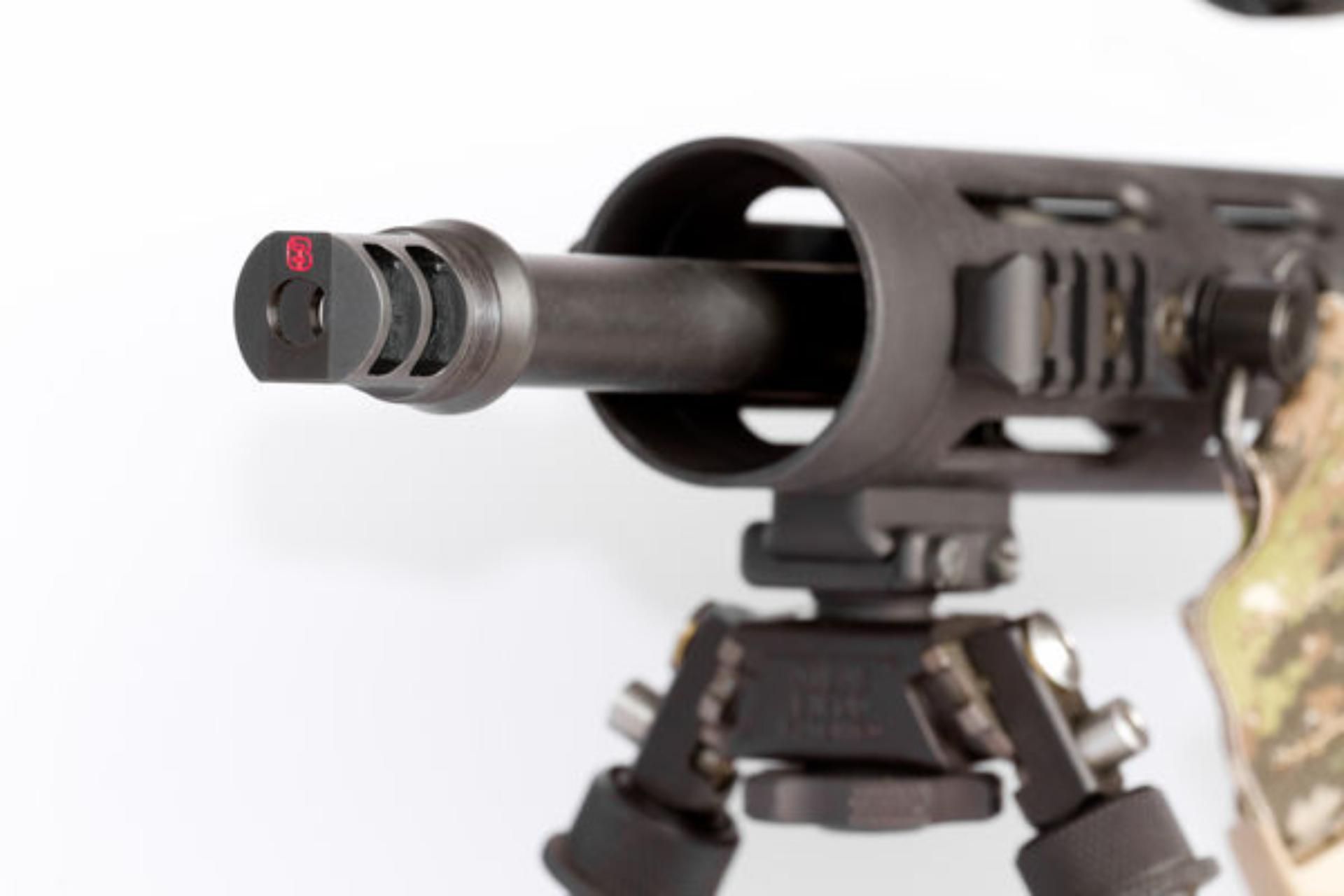

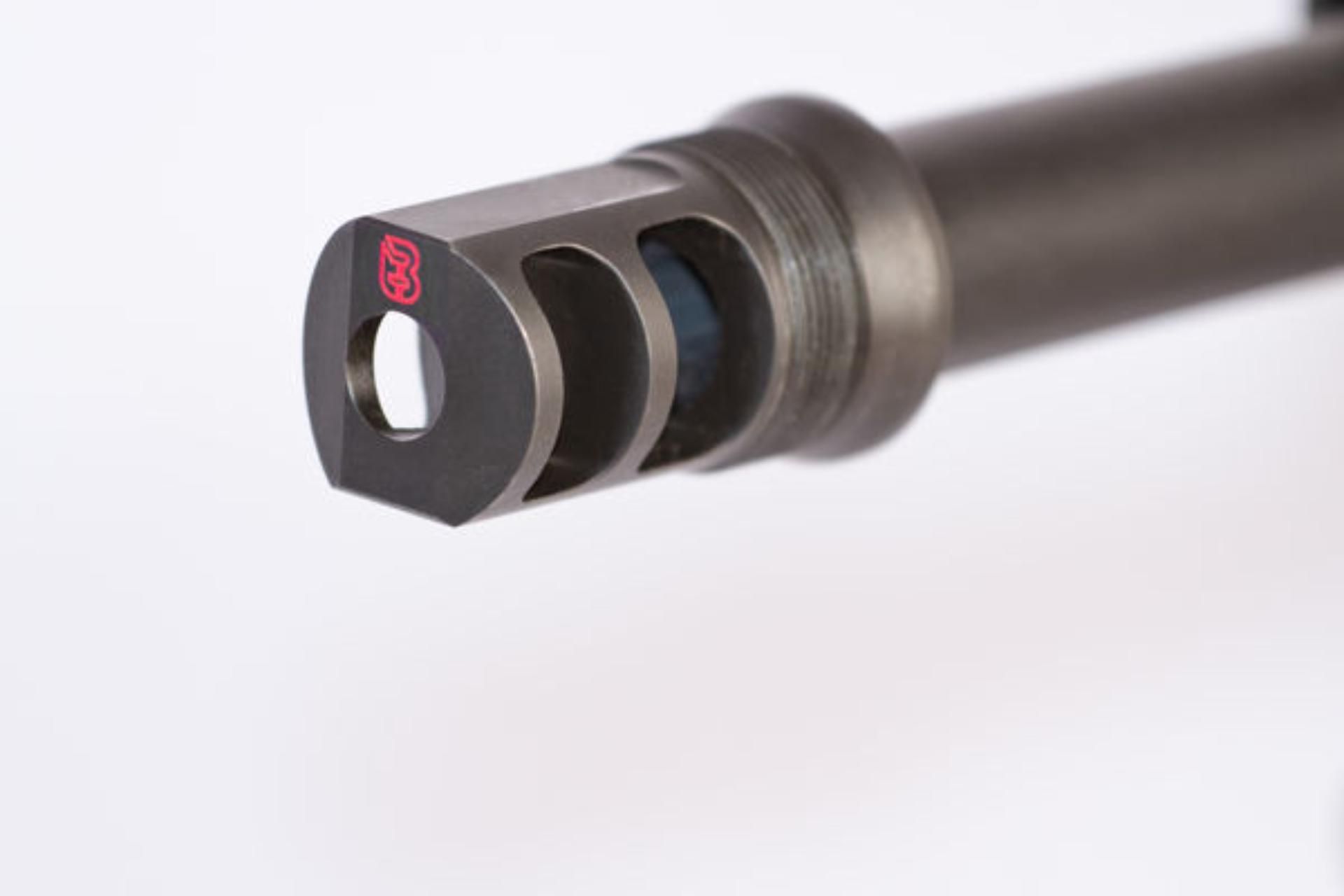

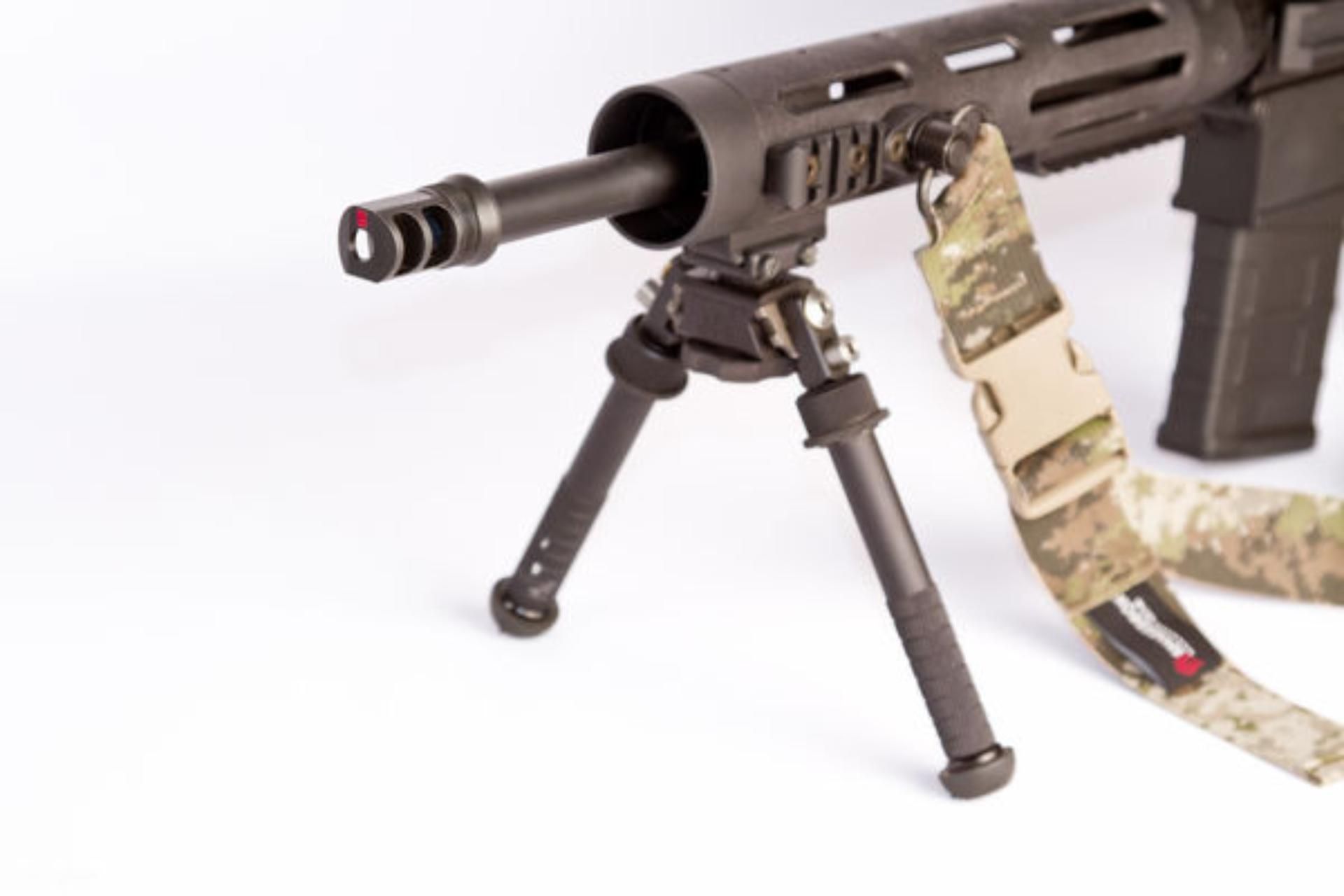

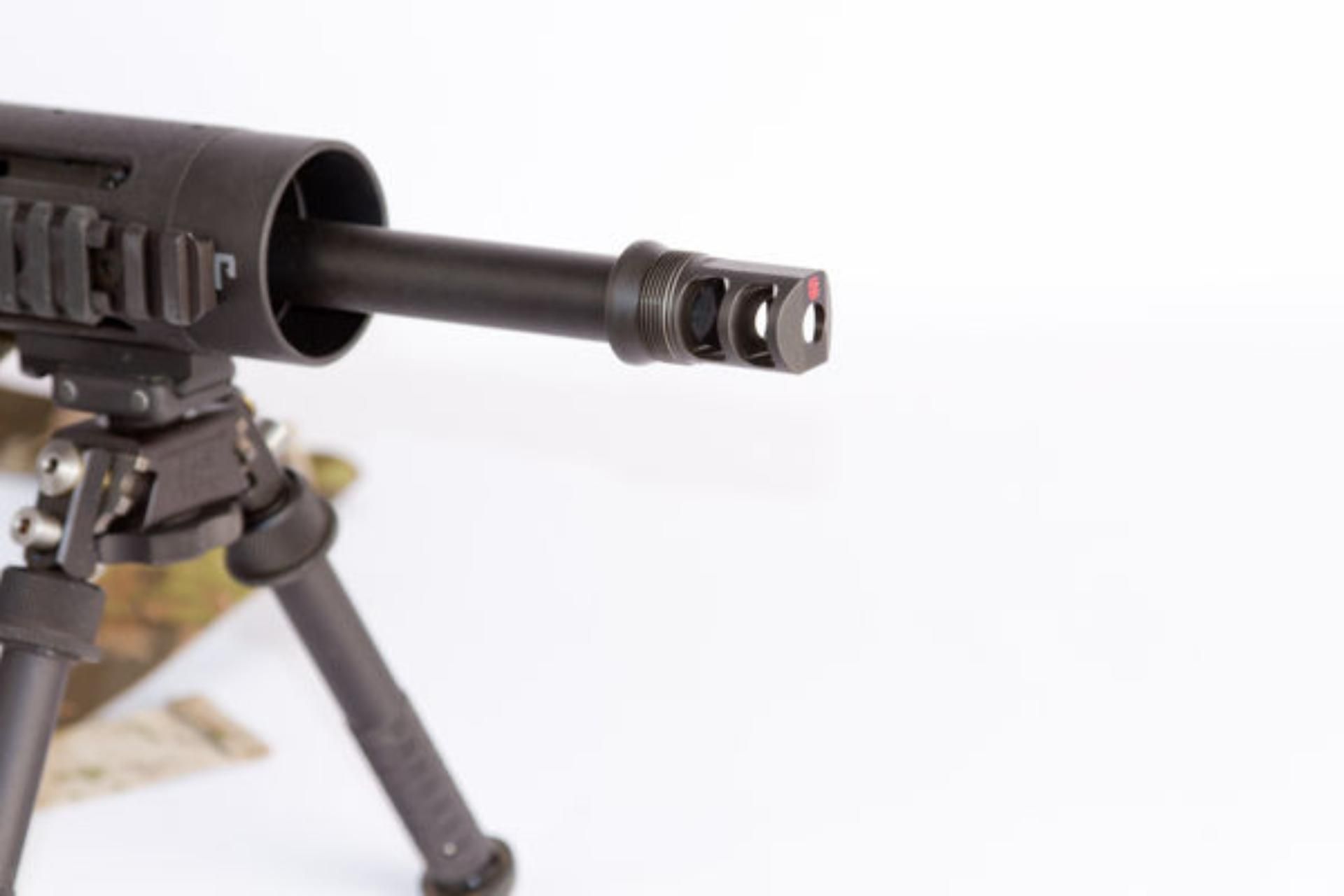

- New Compact Brake for .223 caliber rifles
- Ionbond DLC coating on CB muzzle devices
- Brake-in-suppressor design
- Low back pressure design
- Conical shoulder surface
- 100% titanium construction
- 360-degree fully-welded baffle core
- Helical Baffle Technology
- Magnum rated
- Rock-Solid POI Repeatability
Specifications:
- Caliber .223 caliber, 5.56 mm NATO
- Material Titanium
- Length 7.2 inches.
- Diameter 1.5 inches.
- Weight 14.2 ounces
- Brake Threads 1/2-28 (US standard)
- Finish Black CeraKote; OD Green and FDE available
- Brake Finish Ionbond DLC
- Use semi-auto use; not full-auto rated.
| Weight | 6 oz |
|---|---|
| Muzzle Device Type | Muzzle Break |
| Threads | 1/2×28 |
| Cartridge Compatibility | .22 (.223/5.56/.224, etc.) |
| Finish | Ionbond DLC |
| UPC | 8171 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
