MVB ARC-X PDW Stock for AR-15

ARC Stock Multi Position

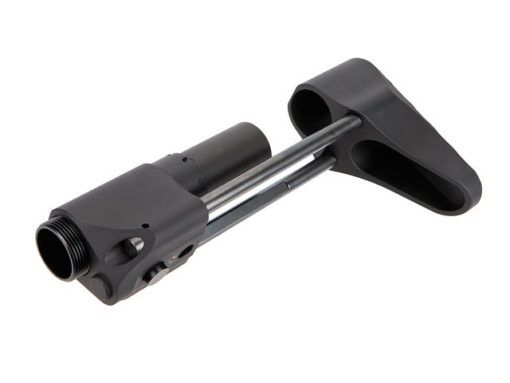

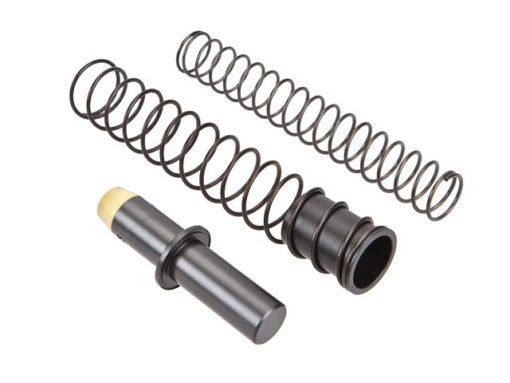

This is a multi position collapsible stock for an AR-15 rifle.  Works with any existing Mil-Spec Bolt Carrier allowing use with both gas impingement and gas piston systems.  Requires only one-handed operation and will lock in the closed, intermediate and extended positions.  Supplied with Springs and buffer.



Known Compatibility  Issues:

LaRue Tactical has a larger than mil-spec buffer extension in the lower receiver that interferes with the ARC Stock rails when attempting to collapse the stock.

CMT Tactical UHP15 has a larger than mil-spec buffer extension in the lower receiver that interferes with the ARC Stock rails when attempting to collapse the stock.

San Tan Tactical has built in quick disconnect sling attachment points just behind the takedown pin which block movement of the ARC Stock rails.

LWRC ambidextrous lower has the right side bolt catch located in a position that prevents the ARC Stock from reaching its collapsed position. Modified version available at http://store.avguns.com/mvb-industries-arc-collapsable-pdw-stock/

Spike’s Tactical ambidextrous billet lower has a right side bolt release lever that extends rearward far enough to prevent the ARC Stock from reaching its collapsed position.



Length Collapsed:                                       4 – 7/8″   (from lower receiver buffer extension)
Length Extended:                                        8 – 7/8″
Postion increments:                                    5 x 1″

Weight	0.0000 oz
Buffer Weight	9mm, Carbine, H1, H2, H3
