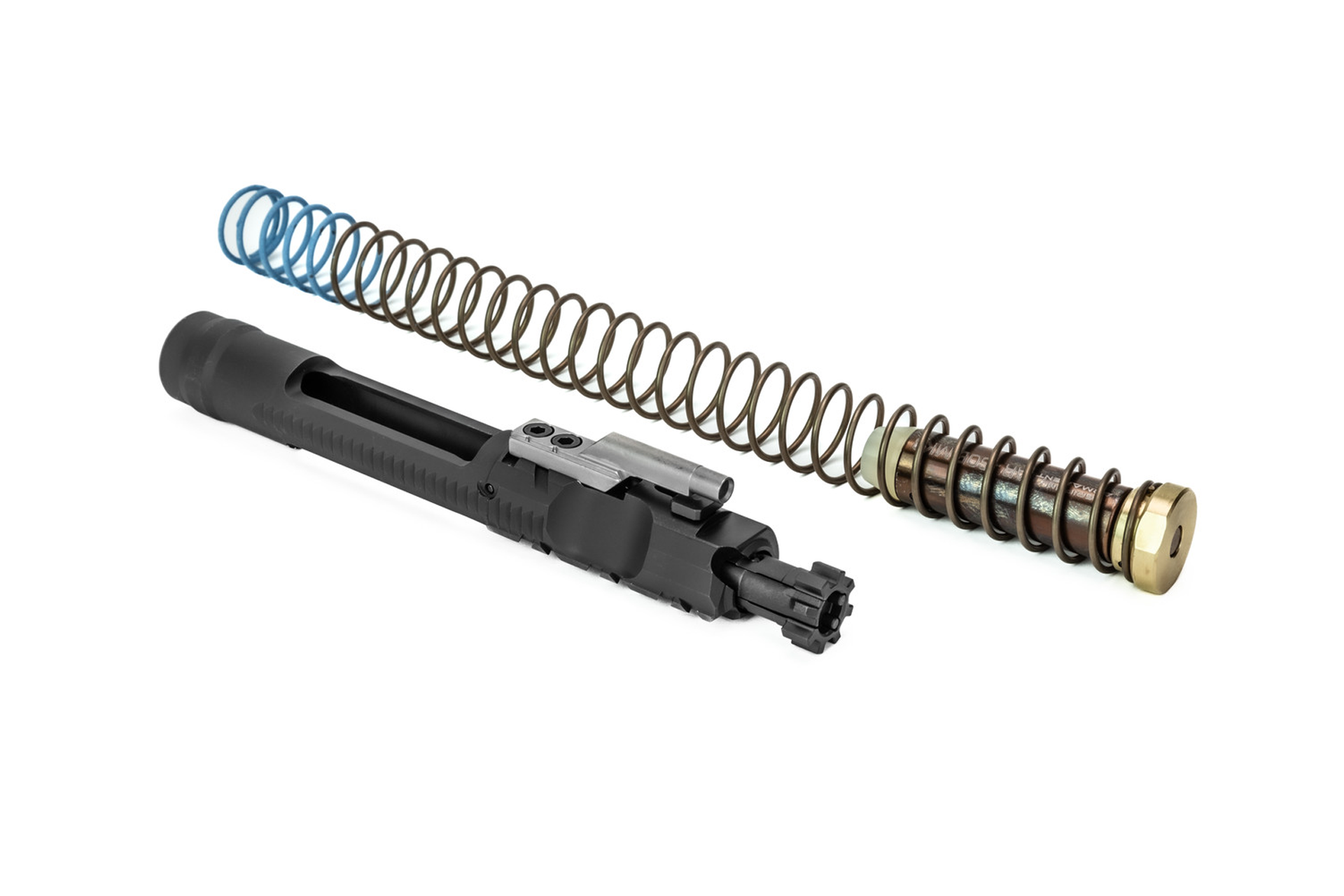

Griffin Arms Enhanced Gas Pocket AR-15 Bolt Carrier Group w/ Spring and Buffer - GAEGPBCGB

The Griffin Enhanced Gas Pocket BCG is a product that was inspired by a desire to reduce right ear sound signature of the AR-15 platform when used with suppressors. This BCG is designed to improve any suppressed AR-15, with its benefits becoming more pronounced on longer gassed systems.

This BCG is constructed of 17-4 stainless steel, a stronger material than the 8620 steel material that most BCGs are made of currently, to increase BCG lifespan. The main design feature is a proprietary gas pocket where gas is vented into on the left side of the receiver. This pocket captures escaping gas increasing dwell time and reducing sound signature at the shooter’s right ear, a near-unsolvable problem inherent and well-known to suppressed AR-15 shooters. This gas pocket is capable of reducing sound signature at the shooter’s ear by 10.5 dB on 18″ barrel rifle gas platforms. Sound reduction is correlated to the length of the gas system, but even on an 11.5″ barrel with a carbine-length gas system, users can expect to see a minimum of 3.5 dB sound reduction at the shooter’s ear – even when used with “high-flow” printed silencers.

Other notable design improvements include a .060″ increase in cam pin travel length, which allows the bolt to remain locked for longer, further reducing escaping concussion blast traveling back down the barrel and out the ejection port. This bolt carrier is sold as a bundle with Griffin’s M4 CAR +15% buffer spring and shortened buffer which allows increased travel of the BCG in conjunction with a shortened nickel-boron plated proprietary gas key, reducing recoil impulse and improving bolt lock reliability by allowing more time for the bolt catch to actuate. This BCG features a physical stop for the carrier key, protecting carrier key screws from shearing off, as well as a .980″ anti-tilt diameter for reducing upper receiver and bolt lug wear introduced by bolt carrier tilt. Carbon scrapers are included for people who like the carbon and debris-removing feature set. Pressure-relief features are included to reduce the risk in the event of a case-head separation. 17-7 extractor and ejector springs are used for higher temperature resistance in the bolt. .030″ radius at the left and right edges of the lugs, as well as .040″ at the rear of the lugs enhances the safety factor even further.

Features

• 17-4 SS Carrier Construction
• Gas-Nitride Carrier Finish with Plasma-Nitride Bolt Finish
• Proprietary Gas Pocket Design reduces right ear signature by up to 10.5 dB on suppressed AR-15s
• Proprietary Nickel-Boron Gas Key with Physical Stop
• Increased Cam Pin Travel Length for delayed bolt unlock
• Increased BCG travel length for softer recoil impulse
• Carbon Scraper Geometry Cuts
• Can be used with or without gas rings (For best sound performance we recommend, and include, two gas rings installed in the rear-most groove of the bolt)
