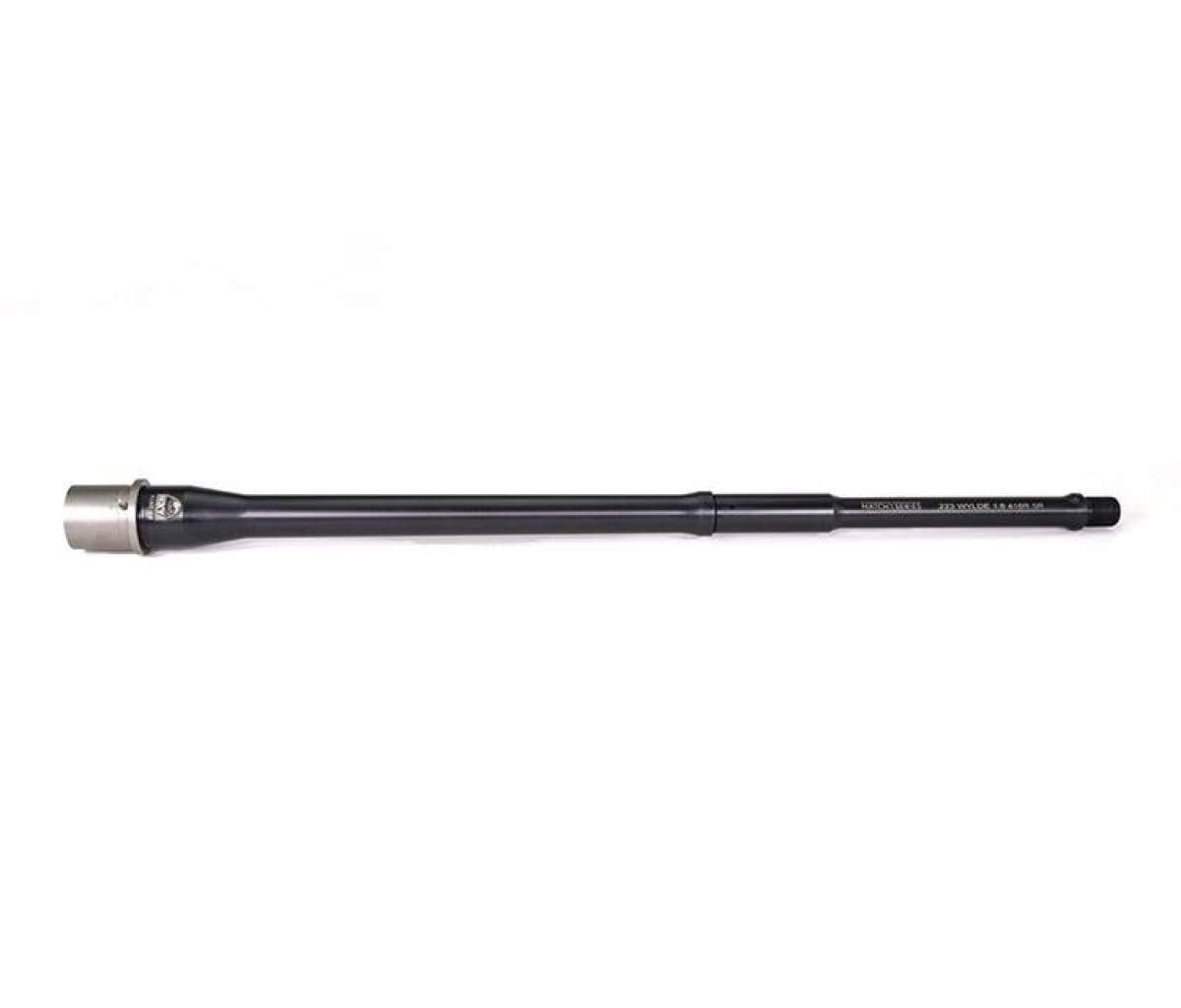

Faxon Firearms Match Series 16" GUNNER.223 Wylde Mid-Length 416-R Stainless Nitride / Melonite 5R Nickel Teflon Extension Barrel 1:8 Twist - 15BW8M16NGQ-5R-NP3
Only 4 left in stock
The Gunner profile is a blend of two of the best performing profiles of all time, Gov’t and Pencil.
Proving that every once and awhile, the Government can do something right, the Gunner’s profile from the extension to the gas block mimics that well-known taper. From there, innovation takes over and the Gunner moves to a .625 gas block journal and our famed pencil profile out front.
Removing the weight from the front of the barrel ensures maximum versatility and keeps material to the rear to maximize heat resistance and mitigate whip.
Faxon’s MATCH SERIES of barrels takes our renowned performance and value up a notch.
Manufactured 100% in-house from gun-barrel-quality bar-stock, the Match Series starts with 416-R in 5R rifling. 5R is a hybrid rifling, with lands opposite grooves and reduced sharp angles that reduces jacket deformation increasing velocity and easy cleaning. We chamber our Match Series in .223 Wylde, a hybrid chamber that the 5R rifling takes full advantage of. Better accuracy through less bullet jump, but fully and individually MPI tested for your safety. After rigorous testing, the barrels are Nitride treated inside and out, locking in the bore, improving barrel life, and keeping the elements at bay.
The extension is coated in Nickel Teflon which maintains incredible dry lubricity, corrosion resistance, and with the coating, tightens up fit between the extension and receiver – again improving upon accuracy. Combined, the Match Series of barrels are ready for when duty calls or the buzzer beeps with unrivaled performance value.
- Barrel Material: 416-R Stainless Steel GBQ
- Barrel Type: 5R Button Rifled
- Barrel Caliber: .223 Wylde
- Barrel Twist: 1:8
- Barrel Length: 16
- Barrel Profile: GUNNER
- Barrel Gas System: Mid
- Inside Finish: Salt Bath Nitride
- Outside Finish: Salt Bath Nitride
- Muzzle Thread: 1/2-28 TPI (Threads Per Inch)
- Gas Block Diameter: .625
- Gas Block Journal Length: 1.9
- Barrel Extension: M4 – Nickel Teflon Coated
- Weight: 1.33 lbs
- Magnetic Particle Inspected
- Polished 11-degree Target Crown
| Weight | 21.28 oz |
|---|---|
| Dimensions | 18 × 3 × 3 in |
| Finish | Nitride / Melonite |
| Barrel Profile | GUNNER |
| Cartridge Compatibility | .223 Wylde |
| Gas Block Journal | 0.625 |
| Barrel Length | 16" |
| Gas System Length | Midlength |
| Platform | AR-15 |
| Twist Rate | 1:8 |
| Muzzle Thread Pattern | 1/2×28 |
| MPN | 15BW8M16NGQ-5R-NP3 |
| UPC | 816341023116 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
Customer Reviews
- Reviews
- Questions
- barrel
- Faxon
- build
- weight
- group
- price
- 4.65
- o optics
- AR @ 4.65
- range defense
US
Tight!
This barrel shank seems to be cut slightly large. It wouldn't fit in the reciever until I stuck it in the freezer for 20 minutes. This is a great thing! It helps prevents poi shift when the barrel heated up. I wish all accurate barrels were like this.
USGreat Barrel !
This worked great for my lightweight build. Intended for closer range defense. Im using a Holosun with a magnifier and it’s only been sighted in at 50yards and this Faxon barrel is very accurate. This profile of barrel put my AR @ 4.65lbs w/o optics. I wouldn’t use this in “three gun” competition, but it wasn’t intended for that. I like it!
USFaxon barrel
Good quality barrel and at a good price
USFaxon Match Series Gunner 16" barrel 223 Wylde
I was looking for a light weight, accurate barrel and this Faxon Gunner is it. Installation was easy with the Faxon gas block and in a very short time I test fired the gun. I tested a new load at the same time and it held a sub minute group. Actially 3 shots within a 3/4 inch group at 130 yards. I am well pleased with this barrel.
One of the best
I use faxon in almost all my builds.
