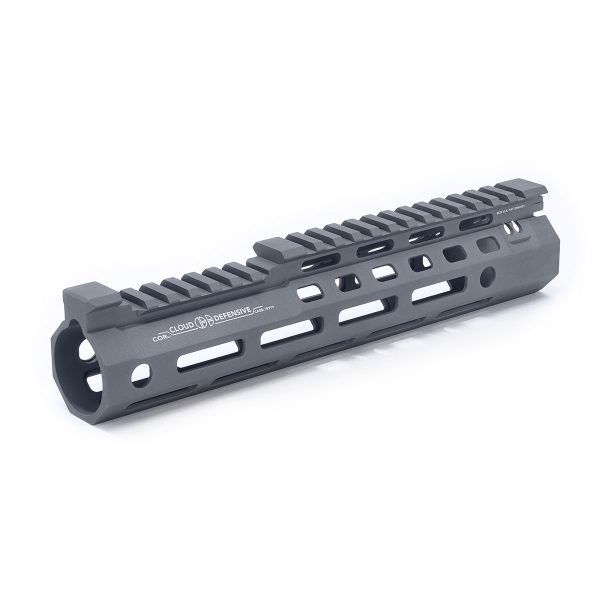

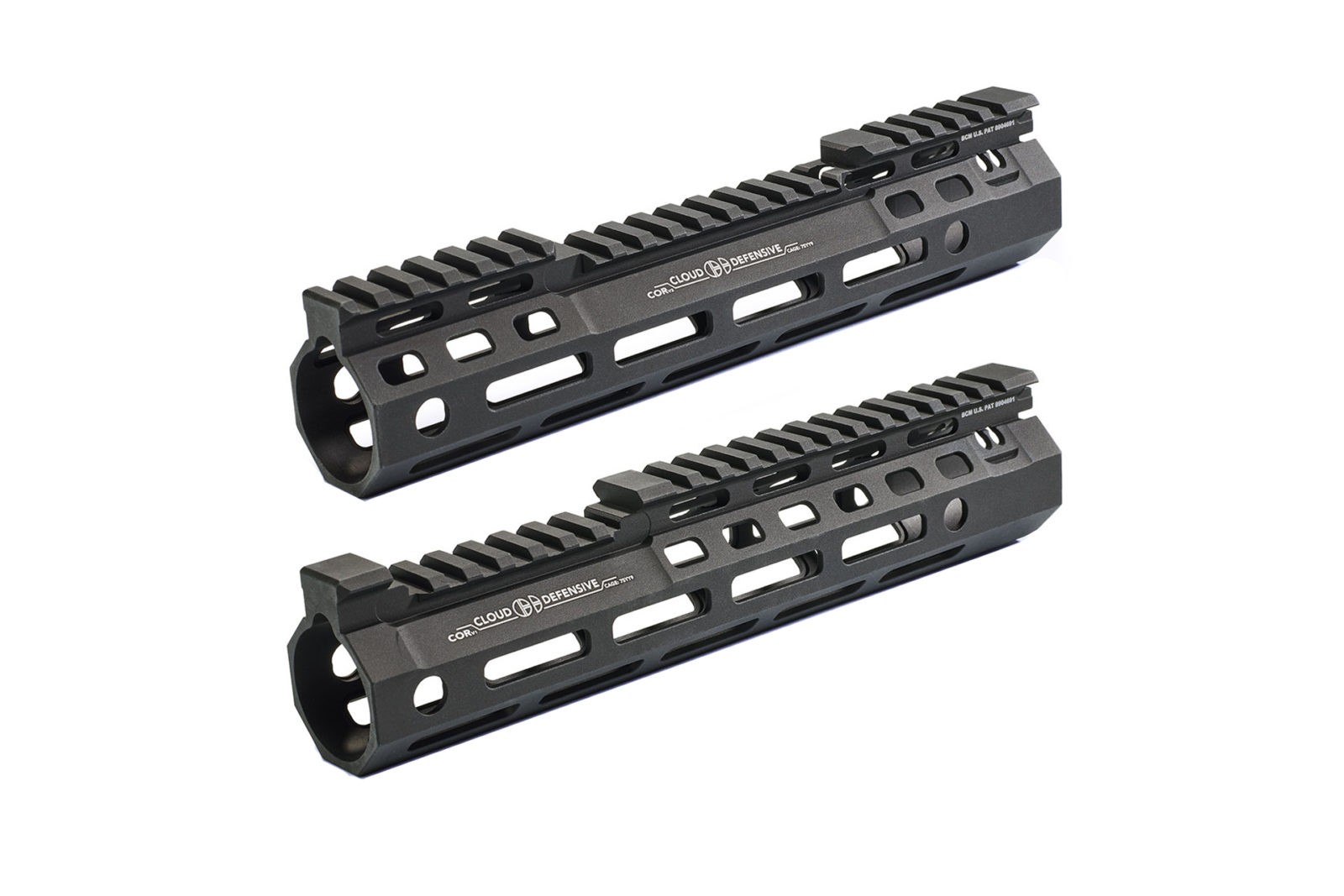

Cloud Defensive 9.55″ Optimized Rail

Cloud Optimized Rail. The worlds first purpose-driven hand guard that recesses your light/laser controls into your rail and seamlessly integrates your switching for truly optimal ergonomics and enhanced protection as well.

COMPATIBILITY

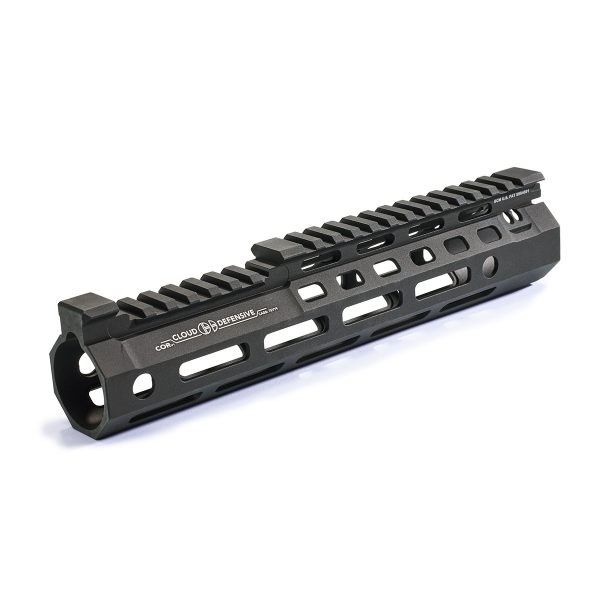

• CORv1 is compatible with our Optimized Weapon Light or the Light Control System (LSS) for Surefire ST-07.

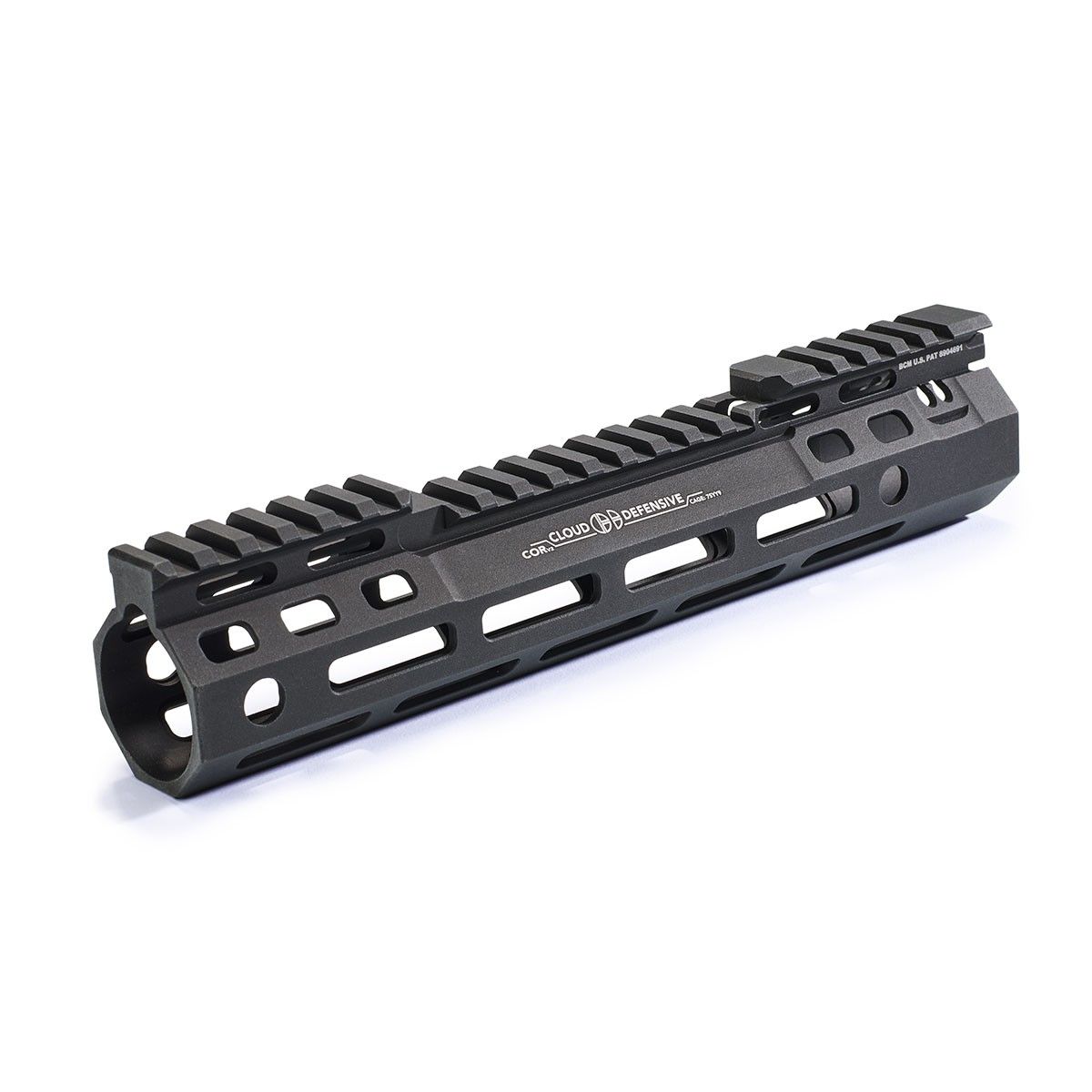

• CORv2 is compatible with Light Control System (LCS) for Surefire, the Light Control System (LCS) Streamlight, Surefire SR-07, Surefire DS-07. The B.E. Meyers MAWL and the Steiner DBAL can also be mounted in the recess, should you want to lower those systems as well.
• Compatible with low-profile gas blocks.
• Compatible with both carbine-length gas systems (Direct Impingement) and pistol-length gas systems (Direct Impingement).
• Not compatible with piston-driven operating systems of any kind.
• Includes a full BCM Barrel Nut assembly.

MATERIALS

• Material: Certified 6061-T6 aluminum
• Plating: Type III “Hard-coat” anodized to Mil-Spec standards.

FEATURES

• Hand guard thickness: .100 which is thicker than any other we’ve found. That means it dissipates heat well and it means it’s significantly stronger than the competition.
• M-LOK® compatible for nearly universal accessory mounting.
• Hand guard length: 9.55” – Optimized for 10.3” and 10.5” barrels. Works just fine with longer barrels.
• Two QD sling mounts integrated into the rail, on both sides for versatility.
• Utilizes the Bravo Company USA patented barrel nut assembly, providing a rock-solid lock-up to the receiver with anti-rotation tabs.
• Made in USA

• OUTER DIAMETER: 1.53″
• INNER DIAMETER: 1.33″
• LENGTH: 9.55″
• WEIGHT: CORv1 (OWL and Surefire LCS variant) Weight with barrel nut 9.35 oz.
• WEIGHT: CORv2 (LCS, Surefire, Streamlight variant) Weight with barrel nut 9.15 oz.
