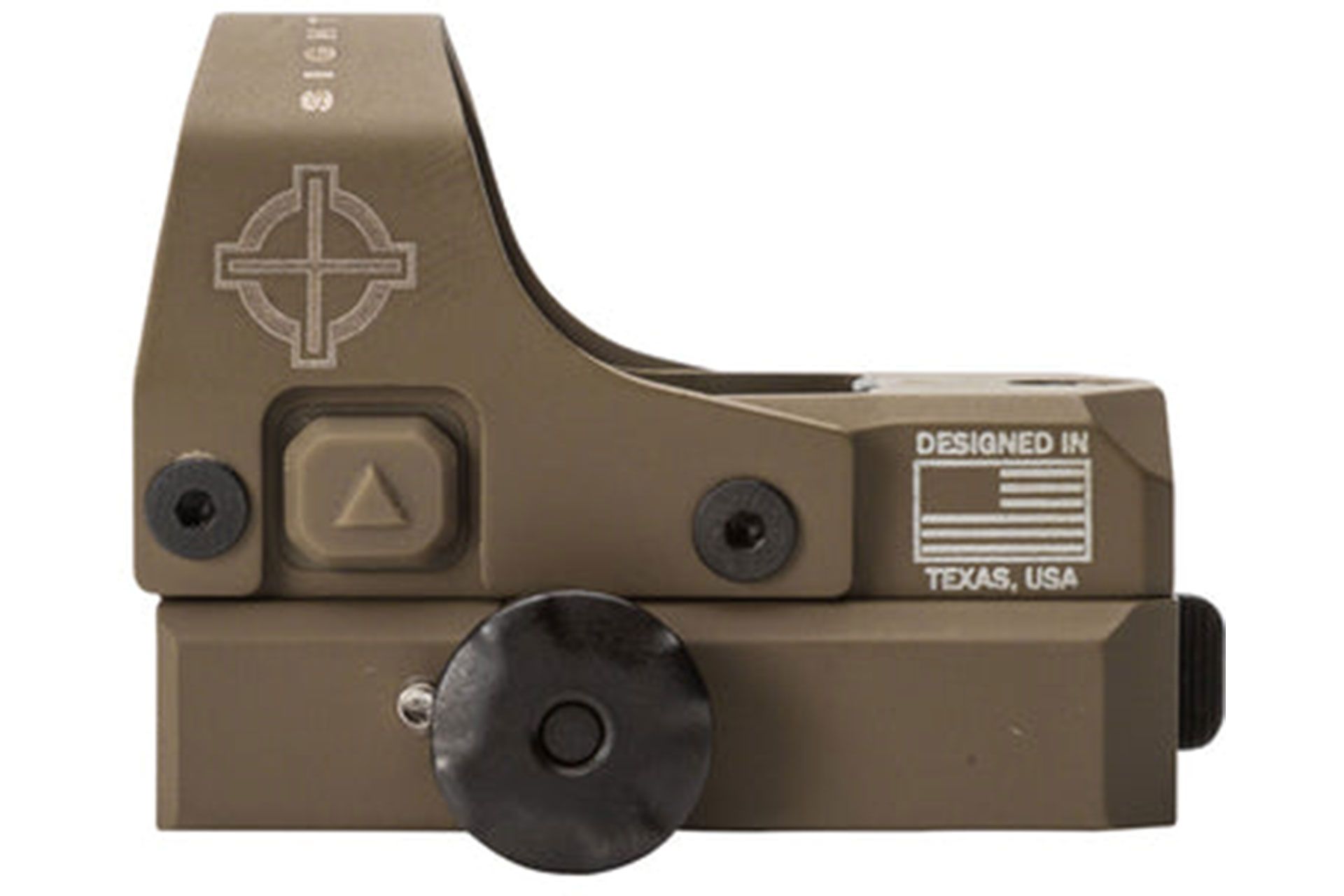

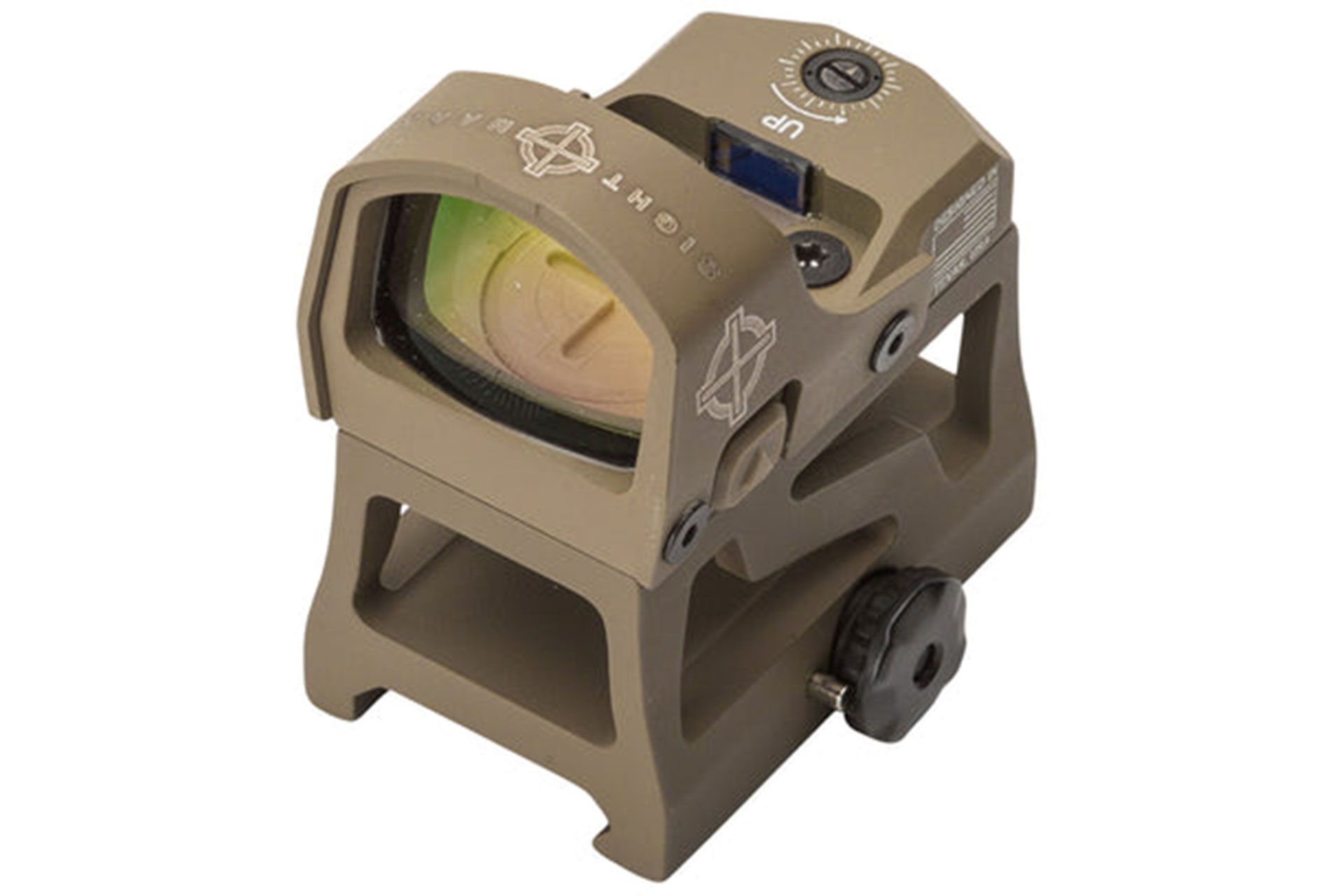

Designed to be used on shotguns, pistols and AR’s, the compact Mini Shot M-Spec Series is a rugged reflex sight with a 3 MOA red dot reticle. The sight includes both a low profile mount and a riser mount. Built from durable aluminum housing with a steel protective hood, the Mini M-Spec features an IP67 waterproof rating, making it ideal for law enforcement missions and hunting in the elements. The M-Spec also boasts extremely low power consumption technology, 1 MOA windage and elevation click adjustments, 10 brightness levels, an ambidextrous digital on switch and a 3 MOA reticle with 12 hour auto shut off.
Features:
- Very Low Power Consumption
- Locking Quick Detach Mount
- Windage And Elevation Click Adjustments
- 10 Reticle Brightness Levels
- 100% Waterproof And Dustproof
- Ambidextrous Digital Switch Brightness Controls
- Steel Shield Protects Optics
- Advanced Parallax Free Lens Design
- Red Reticle Illumination
- Rugged Lightweight Aluminum Alloy Housing
- Scratch Resistant Lens Coating
- 3 MOA Red Dot Reticle
- 12 Hour Auto Shut Off
- Advanced, Parallax Free Lens Design
- Fits Docter/Noblex Footprint
Specifications:
- Reticle, Type: 3 MOA Dot
- Reticle, Color: Red
- Setting, Brightness: Off, 1-10
- Magnification: 1x
- Diameter, Objective Lens: 21×15 mm
- Eye Relief: Unlimited
- Elevation Range of Adjustment: 110 MOA
- Windage Range of Adjustment: 110 MOA
- Adjustment Value: 1 MOA
- Parallax Setting: 25yds
- Finish/Color: Matte black
- Body Material: 6061-T6 aluminum
- Maximum Recoil.375 H&H Caliber
- IP Rating (waterproof): IP67 – waterproof to 1m/3ft for 1 hour
- Nitrogen Filled: No
- Shockproof: Yes, 3ft / .9m
- Fog Proof: No
- Lens Coating: AR red
- Footprint: Docter/Noblex, Burris
- Mount Type: Weaver / Picatinny
- Battery Type: CR1632
- Battery life, hours: 300-30,000
- Battery Voltage: 3 V
- Operating temperature,: -22 to 122 F / -30 to 50 C
- Length w/ low mount: 1.73 in / 44 mm
- Width w/ low mount: 1.14 in / 29 mm
- Height w/ low mount: 1.34 in / 34 mm
- Weight w/ low mount: 2.3 oz / 65 g
- Width w/ riser mount: 1.14 in / 29 mm
- Length w/ riser mount: 1.73 in / 44 mm
- Height w/ riser mount: 2.2 in / 56 mm
- Weight: 3 oz / 85 g
| Weight | 3 oz |
|---|---|
| Dimensions | 1.73 × 1.14 × 1.34 in |
| Click Value | 1 MOA |
| Reticle | 3 MOA Dot |
| Reticle Color | Red |
| Battery Type | CR1632 |
| UPC | 812495023385 |
