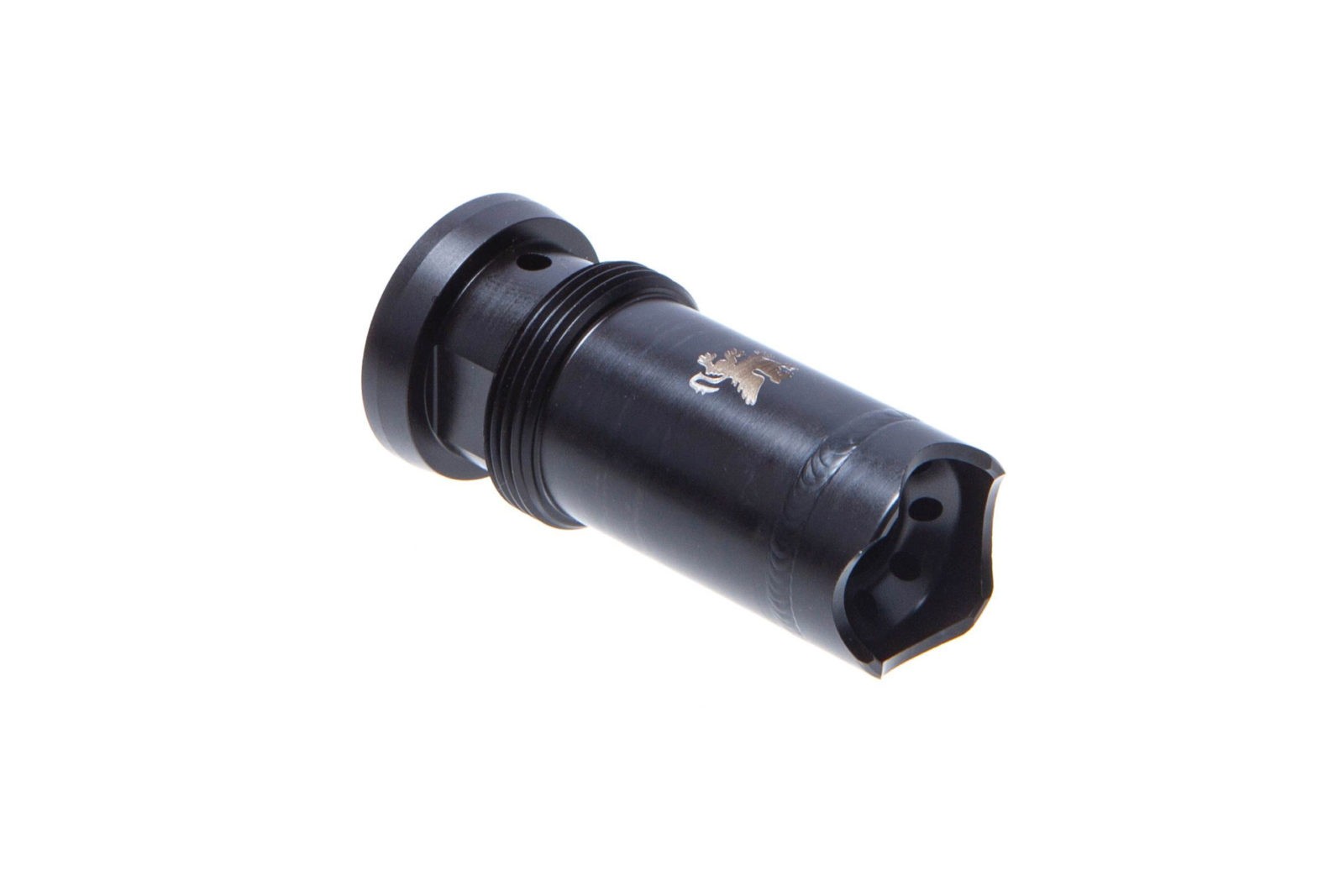

The Griffin Armament Universal Taper mount provides a rock solid sound suppressor interface forĀ RECCE, PaladinĀ®, EXPLORR™,Ā andĀ Sportsman Silencers.
Several years ago Griffin came out with a Linear comp for it’s Gate-LOK™ series of suppressors. Ā Shortly afterwards consumers requested a version for their Taper Mount suppressors as well. Ā Griffin has focusing more on muzzle device R&D than any other suppressor manufacturer. Ā Billet machined from 2 pieces of 17-4 Stainless steel, this device is precision TIG welded together to provide the largest possible internal expansion chamber in a Taper Mount. This design would be impossible to manufacture in a single CNC cut work piece. Ā The welded on front cap features gas jet nozzles protected by a wire cutter shroud to focus concussive blast forward and away from the shooter and by standers in the immediate vicinity. CNC machining this device in two pieces is more expensive and time consuming than a single piece device for both machine time and human handling however no corners were cut to produce the optimal design. Ā For users seeking the lowest concussion muzzle device that can be used either stand alone or with a suppressor this is the unit for them.
The Taper Mount Thread Protector is compatible with this muzzle device for added protection of thread mounts.
- Rock Solid Lock up
- Free of wear prone geometry
- Front cap shields blast and funnels it forward
- Precisely calculated porting to encourage flow forward of the muzzle
- Large internal expansion chamber to reduce concussion
- Precision TIG welded assembly
- Sacrificial baffle strategically engineered to extend the life of your suppressor
- 17-4 PH Stainless steel to withstand hard use
- Lustrous Melonite Finish
- Griffin Laser Logo Marked
- Shim setĀ Included
- Pre drilled 3mm hole for pinning and welding
- Compatible withĀ Recce, Paladin, EXPLORR, Sportsman , and Griffin PistolĀ Silencers with Taper Mount accessories
Specifications:
- Diameter:Ā 1.075″
- OAL:Ā 2.27″
- Weight:Ā 2.5oz
- Materials:Ā 17-4PH Stainless Steel
- Finish:Ā QPQ
- Attachment System:Ā Taper Mount
- Type Of Part:Ā Muzzle Device
- Thread Pitch:
| Weight | 0.0000 oz |
|---|---|
| Caliber | .22 Cal, .30 Cal, 6.5MM |
| Muzzle Device Type | Linear Compensator |
| Threads | 1/2×28, 5/8×24 |
| Finish | Nitride / Melonite |
| MPN | TMLC221228, TMLC305824, TMLC65MM5824 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
Customer Reviews
- Reviews
- Questions
US
Functional and aesthetic
I've yet to shoot with it, but all reviews I've seen and judging how the inside is cut. I can't see how it won't do exactly what it is supposed to. Plus, it looks good on my 6.8 retro inspired Dissipator build it is going on.
