Forward Controls Design/SOLGW Stripped Ambi Billet Lower Receiver - FCD-AMBI-LR
Out of stock
View restrictions
This item is regulated, therefore your entire order will be shipped to an FFL. After you place the order, you will be able to find and submit an FFL of your choosing. It is your responsibility to know your local laws and confirm that the FFL will accept and transfer the item.Â
A restocking fee of 15% or $35 (whichever is greater), plus return shipping cost will be applied to any items returned for any reason.
SKU: 12075 Categories: Lower Parts, Stripped Lowers
LRF (Lower Receiver, Forward Controls Design) is a collaboration between Sons of Liberty Gunworks (SOLGW) and Forward Controls Design (FCD).

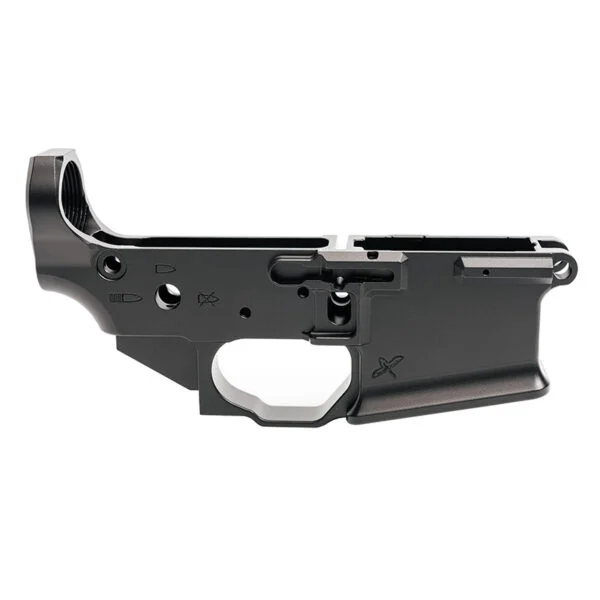

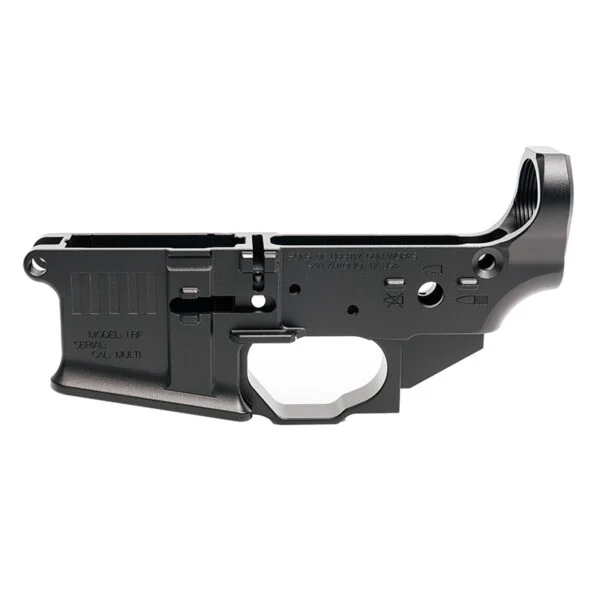

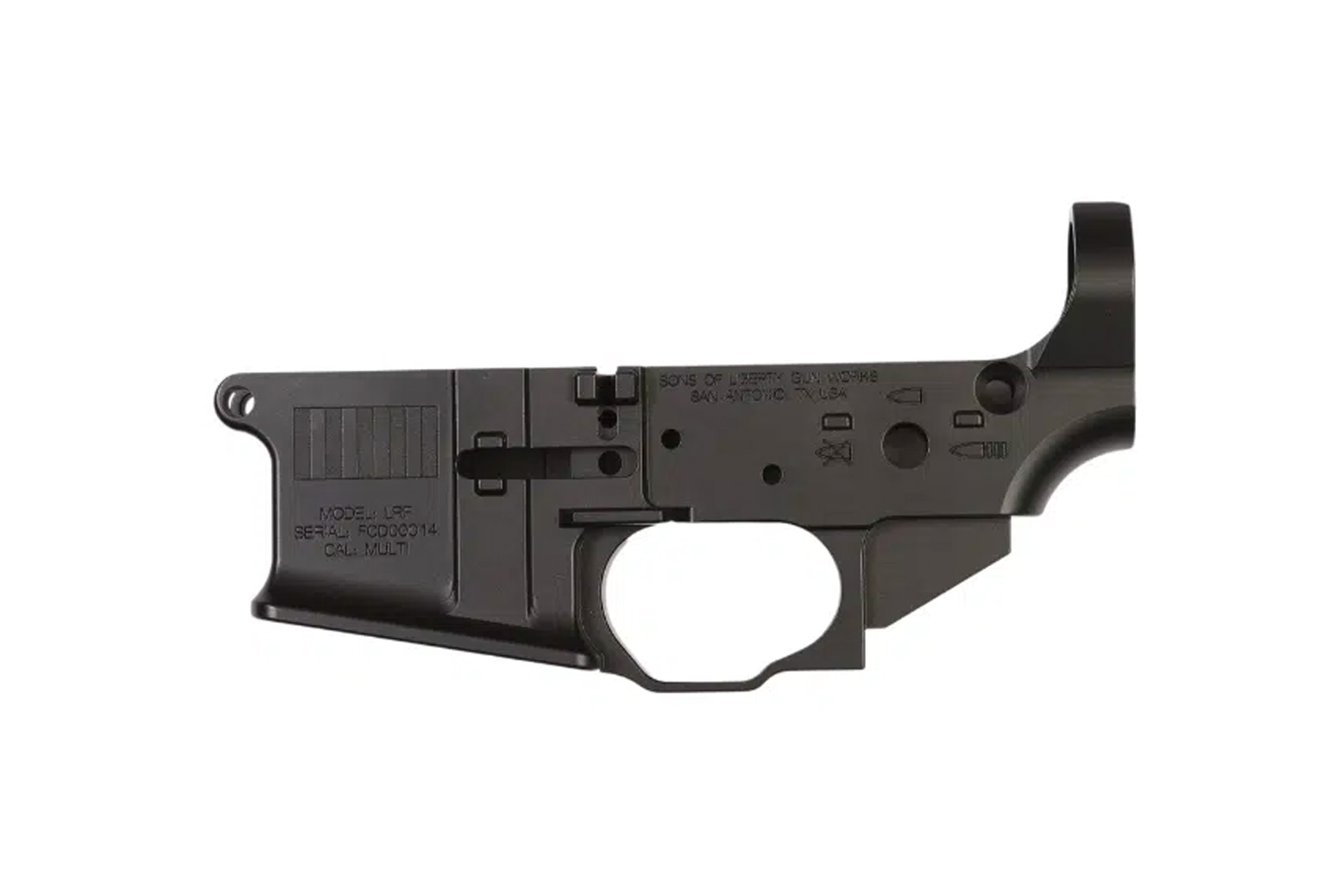

Machined from a solid block of 7075 aluminum, LRF is an ambidextrous AR15 lower receiver with built-in right side bolt release, designed to use our EMR-A (Enhanced Magazine Release, Ambidextrous), a Norgon Ambi-Catch will also work on the LRF.
Design of LRF was completed in 2019. Due to difficulties of Covid-19 induced lockdowns and subsequent buying frenzies of all things firearms related, production was continuously delayed. Neither SOLGW nor FCD are known to rush development or production, we had used this time to further refine the LRF.
LRF was designed with duty and defense users in mind. Its changes from TDP based lowers are based on ergonomics and better protection of magazine releases (both left and right side):
* EMR-A (Enhanced Magazine Release, Ambidextrous) fence on the left side.
* Taller than TDP spec magazine release fence on the right side to ensure TDP spec magazine release button stays below the fence.
* Countersunk take down pin hole on the left, when the user pushes the take down pin in from the left side, the pin can be pushed in further, with more protrusion on the right to pull from.
* Built in trigger guard with the same features as our TGF (Trigger guard, Forward Controls). TGF has more usable space forward of the trigger, not behind. It also has a “ramp” to facilitate magazine loading for users that use the rear spline of the magazine to index and “rock” the magazine into the mag well.
* Flared magazine well with a larger opening.
LRF’s changes are subtle and wholly functions based, a duty/defense firearm doesn’t concern itself with aesthetics, nor benefit from them. One will not find it decorated with lightening cuts/holes, or obnoxiously large logos.
A tastefully small Cygnus is engraved on the right side of the LRF magazine well to denote FCD’s involvement in the project’s development, one can easily miss or overlook it, and that’s the point, we don’t intend the LRF to be a walking billboard. It’s designed and made for work, not for show.
Weight | 8 oz |
---|---|
MPN | FCD-AMBI-LR |
UPC | 785939519372 |
Compliance
NFA (National Firearms Act) compliance is crucial for legal ownership and transfer of regulated firearms and accessories like short-barreled rifles, suppressors, and certain types of ammunition, ensuring adherence to federal regulations to avoid legal penalties and ensure responsible firearm ownership.
Customer Reviews
- Reviews
- Questions
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
High Quality Ambi Lower
Definitely worth the coin, when I finally received this lower from my local FFL dealer, I was amazed by the quality in workmanship. No fancy gimmicks just simple and effective solutions designed into the lower for your professional end user that I wished existed on my M4a1 when I was in the Corps. FCD works w/ SOLGW as well works w/ School of American Rifle (definitely one of the top gunsmiths in America, he has a YouTube channel where he teaches and records some of his work). But yes this pdw lower has now definitely replaced my Aero pdw lower used for my favorite go-to MK18 upper.
