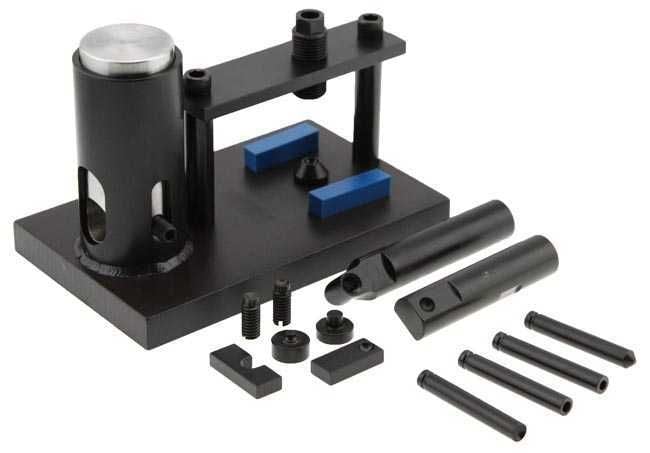

AK-Builder AK-Builder Rivet Tool - T5-11

Precision riveting is essential for any serious AK builder, and the AK-Builder Rivet Tool delivers professional-grade results for installing front and rear trunnion rivets, center support rivets, and scope rail rivets on your receiver. Designed specifically for AK platforms, this robust tool ensures consistent, straight rivet sets every time, eliminating common frustrations like misalignment or damaged receivers during the build process.

Key Features

• Two precision alignment tools with dedicated holes for 4mm and 4.5mm rivets to match your exact rivet size for optimal centering
• Cupped rivet forming die that supports the rivet head while allowing visual confirmation of the set through the notched window
• Adjustable arm and tightening mechanism that locks the receiver square for repeatable, accurate installations
• Compatible with both long and short rivets (excluding trigger guard rivets) for versatile use across multiple AK configurations
• Integrated dimpling capability for swell-neck rivets, ensuring proper receiver contour without separate tools

Technical Specifications

• Dimensions: 9.5 inches length x 3.5 inches width x 8.5 inches height
• Weight: 192 units for stable, vibration-free operation
• Constructed from durable steel for long-term reliability in demanding shop environments
• Supports 7.62x39mm, 5.45x39mm, and similar AK variants

Why Choose the AK-Builder Rivet Tool

DIY AK builders often struggle with crooked rivets or excessive force that can warp receivers. This tool addresses those pain points by providing guided alignment and controlled pressure application, helping you achieve factory-level results at home. The included alignment pins and forming components streamline the process, reducing setup time and the risk of errors that could compromise your build’s structural integrity or aesthetics.

Whether you’re completing a parts-kit build or upgrading an existing firearm, the AK-Builder Rivet Tool offers the precision and repeatability needed for professional outcomes without requiring specialized shop equipment.

FAQs

How does the alignment process work?

Select the alignment tool that fits your rivet diameter most closely, insert it through the receiver and trunnion holes, then tighten the main bolt while ensuring the receiver remains square. Once secure, switch to the cupped forming tool to set the rivet.

Can this tool be used for all AK rivet types?

It handles front and rear trunnion rivets, center supports, and scope rail rivets effectively. Trigger guard rivets require a separate dedicated tool.

What maintenance is recommended?

Keep the tool clean and lightly oiled on moving parts. Avoid over-tightening to prevent damage to the ram or alignment components.
